The ultrasonic probe is a key component of the ultrasound diagnostic instrument, which can transform electrical signals into ultrasonic signals and vice versa, thus having a dual function of ultrasonic emission and reception.
Piezoelectric effect
The core of the wireless ultrasonic probe is piezoelectric crystal or composite piezoelectric material. Early transducers used crystals with piezoelectric effect, and high-polymer piezoelectric materials were used as transducers, which have the characteristics of frequency bandwidth, low impedance, and easy processing. Currently, the probe has begun to use composite materials synthesized with ceramics and high-polymer polymers. There are some special crystals in nature. When they are subjected to external forces and deformed, the charge accumulates on the surface of the crystal to form a voltage. This effect is called the piezoelectric effect, and such crystals are called piezoelectric crystals.
The piezoelectric crystal (oscillator) is the core part of the ultrasound transducer. The piezoelectric crystal can be divided into natural and artificial types. Quartz crystal is a natural piezoelectric material, but it is expensive and its performance indicators are not good. Currently, piezoelectric materials are used almost entirely in artificial piezoelectric crystals.
The structure, form, and external excitation pulse parameters, working and focusing methods of wireless ultrasonic probes have a great influence on the shape of the ultrasonic beam emitted, and have a great influence on the performance, function, and quality of the ultrasound diagnostic instrument. The transducer array material has little effect on the shape of the ultrasonic beam, but has a greater effect on the piezoelectric efficiency, sound pressure, sound intensity, and imaging quality of its emission and reception.
Single probe
It usually uses ground and polished flat circular piezoelectric ceramics as transducers. Ultrasonic focusing usually adopts two methods: active focusing of thin-shell spherical or bowl-shaped transducers and flat thin circular lens focusing. It is commonly used in ultrasound diagnostic instruments of A-type, M-type, mechanical fan scan, and pulsed Doppler work modes.
Mechanical probe
It can be divided into two types: single-element transducer reciprocating swing scanning and multi-element transducer rotating switching scanning probe according to the number of piezoelectric chips and motion methods. According to the characteristics of the scan plane, it can be divided into sector scan, panoramic radial scan, and rectangular planar line scan probes.
Electronic probe
It adopts a multi-element structure and uses electronic principles for beam scanning. According to its structure and working principle, it can be divided into linear array, convex array, and phased array wireless ultrasonic probe.
Intraoperative probe
It is used to display the internal structure and position of surgical instruments during the surgical procedure, and belongs to a high-frequency probe with a frequency of about 7MHz, which has the characteristics of small size and high resolution. It has three types: mechanical scanning, convex array, and line control.
Puncture probe
By avoiding lung gas, gastrointestinal gas, and bone tissue through the corresponding body cavity, it can approach the deep tissue to be examined and improve the detectability and resolution. Currently, there are rectal probes, urethral probes, vaginal probes, esophageal probes, gastroscope probes, and laparoscopy probes. These probes can be mechanical, line-controlled, or convex array; they have different sector angles; and have single-plane and multi-plane forms. Their frequencies are relatively high, generally around 6 MHz. In recent years, a vascular probe with a diameter of less than 2mm and a frequency of above 30MHz has been developed.
Transcavitary probe
By avoiding lung gas, gastrointestinal gas, and bone tissue through the corresponding body cavity, it can approach the deep tissue to be examined and improve the detectability and resolution. Currently, there are rectal probes, urethral probes, vaginal probes, esophageal probes, gastroscope probes, and laparoscopy probes. These probes can be mechanical, line-controlled, or convex array; they have different sector angles; and have single-plane and multi-plane forms. Their frequencies are relatively high, generally around 6 MHz. In recent years, a vascular probe with a diameter of less than 2mm and a frequency of above 30MHz has been developed.

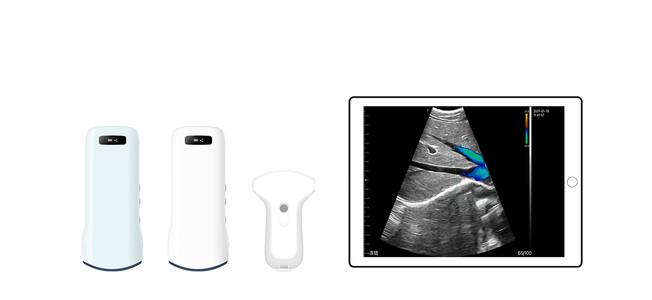

Understanding the key components of ultrasound probes is essential for appreciating how these devices function in medical imaging. Ultrasound probe components work together to generate, transmit, and receive sound waves, enabling high-resolution diagnostics. Below, we break down the primary elements, with a focus on piezoelectric crystals and matching layers, which are critical for efficient ultrasound transmission and reception.
1. Piezoelectric Crystals
At the heart of every ultrasound probe are piezoelectric crystals, which serve as the transducer's core element. These crystals exhibit the piezoelectric effect, where mechanical stress (like deformation) produces an electrical charge, and conversely, an applied voltage causes the crystal to vibrate and emit ultrasonic waves.
Materials Used: Modern probes often use synthetic piezoelectric materials such as lead zirconate titanate (PZT) or composite ceramics, which offer superior performance over natural quartz. These materials are chosen for their high sensitivity, wide frequency bandwidth, and durability.
Function: When an electrical pulse is applied, the crystals vibrate at ultrasonic frequencies (typically 2-18 MHz, depending on the probe type), generating sound waves that penetrate body tissues. On reception, returning echoes deform the crystals, converting mechanical energy back into electrical signals for image processing.
Importance in Probe Design: The crystal's thickness and arrangement determine the probe's frequency and resolution. For instance, high-frequency crystals (e.g., 7-18 MHz in linear probes) are ideal for superficial imaging like vascular or musculoskeletal scans, while lower frequencies suit deeper penetration in convex probes.
Piezoelectric crystals are fundamental ultrasound probe components, directly influencing image quality, sensitivity, and the probe's overall efficiency in clinical applications.
2. Matching Layers
Matching layers are acoustic impedance-matching materials placed between the piezoelectric crystals and the patient's skin. They act as an intermediary to minimize energy loss during sound wave transmission.
Purpose: Without matching layers, a significant portion of ultrasonic energy would reflect back due to the impedance mismatch between the crystal (high impedance) and human tissue (low impedance). Matching layers reduce this reflection, improving transmission efficiency to over 90% in advanced probes.
Composition: Typically made from materials like epoxy resins mixed with tungsten or aluminum powders, these layers are engineered to have an impedance value that's the geometric mean of the crystal and tissue impedances. Probes often feature multiple matching layers (1-3) for broadband performance.
Impact on Performance: They enhance bandwidth, allowing the probe to handle a wider range of frequencies for better resolution and penetration. In wireless ultrasound probes, like those from Konted Medical, optimized matching layers contribute to compact designs without compromising image clarity.
These components—piezoelectric crystals and matching layers—are integral to ultrasound probe components, ensuring reliable signal conversion and minimal distortion. For more on how these elements integrate into our wireless probes, explore our product line.
Ultrasound Probe Types Comparison
The following table compares the main types of medical ultrasound probes, including their typical frequency ranges, primary clinical applications, as well as advantages and disadvantages. This helps doctors and engineers quickly select the most suitable probe type. Higher frequency generally provides better resolution but shallower penetration depth; conversely, lower frequency allows deeper penetration but lower resolution.
| Type | Typical Frequency Range | Primary Uses | Pros | Cons |
| Linear Probe | 7–18 MHz | Superficial structures: vascular, MSK, thyroid, breast, small parts, nerve blocks | High resolution, excellent near-field detail, rectangular image | Limited depth penetration (usually <6 cm), larger footprint |
| Convex (Curvilinear) Probe | 2–7 MHz | Abdominal imaging: liver, kidney, gallbladder, obstetrics, gynecology, FAST exam | Wider field of view, good depth penetration (up to 30 cm), sector-like image | Lower resolution than linear, curved image can distort near field |
| Phased Array Probe | 1–5 MHz | Cardiac (echocardiography), transcranial Doppler, abdominal in difficult patients | Small footprint, wide sector angle (90°), excellent for intercostal / subcostal views | Lower spatial resolution, more artifacts in near field |
| Microconvex Probe | 3–10 MHz | Pediatric abdominal, neonatal head, small animal imaging, some cardiac applications | Small footprint + good penetration, balances resolution and depth | Slightly lower resolution than linear, niche applications |
| Endocavitary / Transvaginal / Transrectal Probe | 5–12 MHz | Transvaginal (gynecology/obstetrics), transrectal (prostate), transesophageal (TEE) | Very high resolution for near-field organs, avoids bone/air interference | Invasive, limited to specific cavities, smaller field of view |
| Intraoperative / Surgical Probe | 5–15 MHz | Intraoperative guidance, laparoscopic ultrasound, neurosurgery | High frequency, compact, real-time surgical feedback | Very limited depth, specialized use only |
| Pencil / Sector Probe (older mechanical) | 2–5 MHz | Early cardiac or Doppler applications (now rare) | Simple design, good for deep structures | Poor image quality by modern standards, moving parts prone to failure |
Note: Frequency ranges and applications are based on common clinical standards as of 2026. Actual performance may vary slightly depending on the manufacturer and specific probe model.
