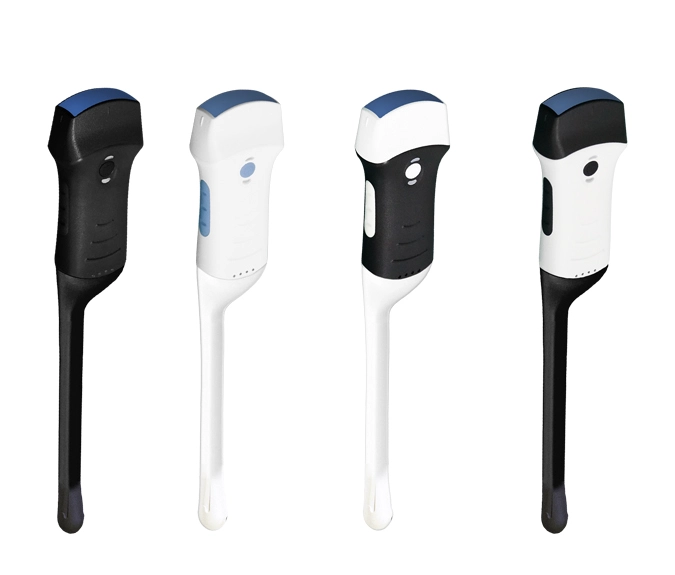

C10RC is one of our dual head ultrasound probe，as you can see, it has a very long ultrasound probe.In most cases it is used in obstetrics to confirm and evaluate pregnancy. It uses ultrasound to produce images of the inside of a woman's uterus - bladder, uterus, fallopian tubes, cervix and ovaries.It can also be used as a gynecological medical tool to diagnose conditions in women and girls, especially those of the reproductive tract.There is a convex probe on the other side,it can realize imaging from multiple angles, improving the accuracy and detail of imaging.It can be used to detect abdominal organs, urinary organs, etc. to see if there are any lesions.
Product specs:
| Model | C10RC |
| Probe Type | Wireless dual head convex + TV probe |
| Software Systems | Android. IOS. Windows |
| Probe Button | -Power on/off -Freeze/unfreeze -Switch scanning probe |
| *Connection | Wi-Fi USB |
| Wi-Fi Type | 802.11n/20MHz/ 2.4G/5G |
| Frequency | Convex：3.2/5Mhz Cardiac：2.5/5Mhz Endocavity：6.5/8Mhz |
| Scan Depth | Convex：90-305mm Cardiac：90-160mm Endocavity：20-100mm |
| Scan Angle | 80°/149° |
| Length | / |
| Elements | 128 |
| Dimensions | 310x54x30mm |
| Weight | 251g |
| *Anti-skid Design | 4 sides of probe |
| Waterproof Grade | IP68 |
| Display Mode | B B+B B+M Color PW/CW PDI B+Color+PW |
| *Dual&Full screen Display Software Control B GN(Gain) Color GN(Gain) D(Depth) ENH(Enhancement) DR(Dynamic Range) H(harmonic) Focus 8 TGC Mid-Line An note Page Left/Right Up/Down | ● ● ● ● ● ● ● ● ● ● ● ● |
| *Body Mark | ● |
| Dicom | ● |
| Image storage | JPEG, MP4, Dicom |
| Clip Loop | Automatic / manual 100-200-500-1000 frame |
| Frame rate | 18~24 F/S |
| Presets | Abdomen. Cardiac. |
| Measures | B: Length, Area/Circumference, Angle,Trace,Distance,GA(CRL,BPD,GS,FL,HC,AC), EFW(BPD,FL) B+M: Heart Rate, Time, Distance, LVID( LVIDd, LVIDs, EF, SV) B+PW:Velocity, Heart Rate(2), S/D, Depth Automatic Vessel Flow Measure：PS, ED, TAMAX, TAMEAN, PI, RI, S/D, Diam, Flow |
| Measure Magnify | ● |
| *Built in cooling coating | ● |
| *Working While charging | ● |
| Battery | Built-in 2 rechargeable High capacity Lition batteries 3.8 V, 2600 mAh, 9.88 Wh |
| Power Consumption | 3 W (Live) / 1 W (freeze) |
| Continuous hours of scanning | 4h 72h Ultra-long standby |
| Recharge time | 3~4h |
| *Charging | Type-C USB Wireless charging |
| Language | Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil) |
| Shell Colors | 4 styles |
It is possible to observe the movement of the fetus in the uterine cavity, as well as the movement of the fetus in the uterine cavity.
Its purpose is mainly biological measurement to assess fetal growth and screen for malformations of large fetal structures.
At the same time, pelvic reproductive tract inflammation, such as hydrosalpinx, pelvic effusion and pyometra, can also be checked.
Ultrasonic materials are harmless to the human body.
