C10RN B&W Abdomen Ultrasound Convex Probe

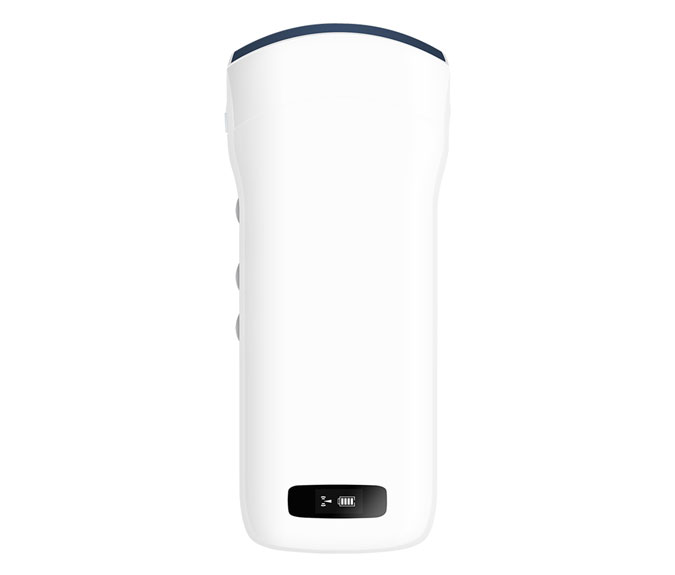

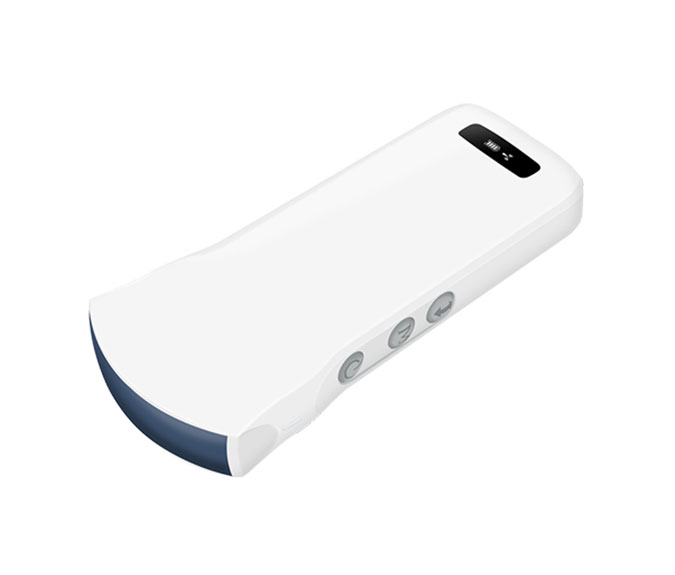

C10RN is a wireless handheld ultrasound which is smaller and portable than traditional ultrasound. It was launched in 2017 and has frequency conversion function, scan frequency 3.5-5Mhz. The probe body is upgraded to 3 activation buttons. C10RN provides doctors with clearer 2D ultrasound images.

abdominal ultrasound probe
transducer used for abdominal ultrasound
abdominal probe
abdominal probe ultrasound
rn1
rn

Specification of C10RN B&W Abdomen Ultrasound Basic Convex Probe

Product specs:

ProbeWireless probe
Elements128
Frequency3.5/5.0mhz
Depth90-200mm
HostTablet, Smart phone, PC
Connection802.11.n WIFI(AP)
Software Adjustable ParametersGN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote
MeasurementB: Length, Area, Circumference, GA(CRL, BPD, GS, FL, HC, AC)
B+M: Heart rate, Time, Distance
Playback Frames100, 200, 500, 1000 optional
Display ModeB, B/M
WiFi TypeBuilt-in WiFi, 802.11g/20MHz/5G/450Mbps
Channel64
Frame24s/f
Gain40-110Db
LanguageEnglish, Chinese,Russian, German, Italian, Spanish, Portuguese
Powerby built-in 4200mAh battery
Power Consumption4W (probe run) /1.5W (probe stop)
Battery ReplaceableYes
Battery Last3hours (Working time), 12hours (Stand by time)
ChargerWireless charger


Features of C10RN B&W Abdomen Ultrasound Basic Convex Probe

Features of C10RN B&W Abdomen Ultrasound Basic Convex Probe

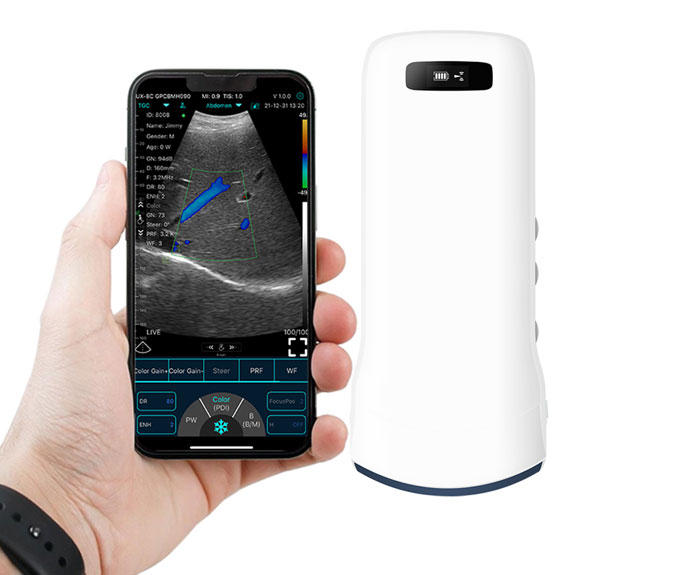

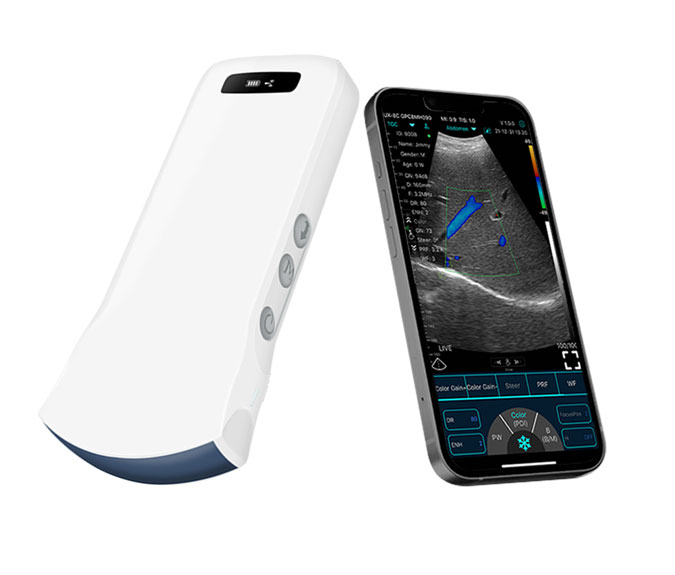

  • Multi-system platform

    Connect Android/IOS/Windows Smartphone, tablet, PC.

  • Easy to operate and carry

    Small size, light weight 200g~240g, wireless use.

  • High-definition image

    128 elements, 4-level image optimization technology, White&Black WIFI ultrasound.

  • Can be applied to abdominal diagnosis,

    Suitable for emergency, clinic, outdoor and veterinary examination.

  • Manage your patient information

    Save and share images/videos, print patient reports.

B&W Abdomen Ultrasound Video Display

Abdominal Ultrasound Probe Liver B
Abdominal Ultrasound Probe Liver B
