C10LN B&W Superfical Ultrasound Linear Probe

C10LN provides physicians with clearer 2D ultrasound images. As a kind of wireless ultrasound probe, it launched in 2017, it's a wireless handheld ultrasound that's smaller and more portable than traditional ultrasound. With frequency conversion function, scanning frequency 7.5-10mhz. The probe body is upgraded to 3 activation buttons.

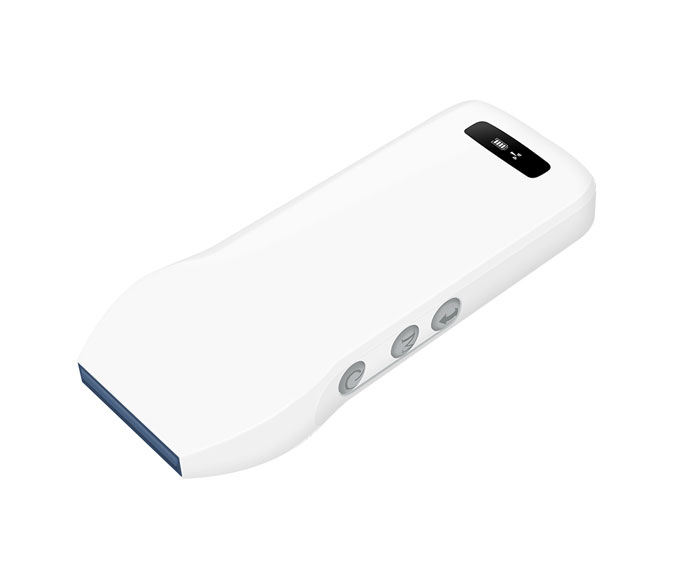

curved linear probe

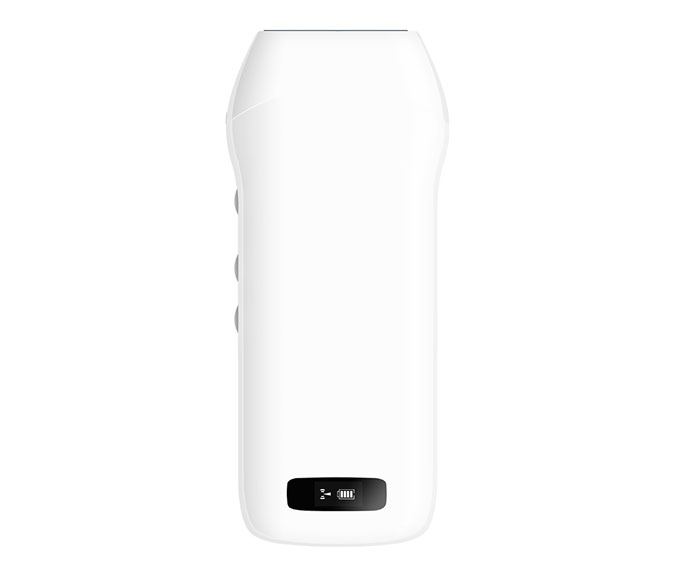

linear probes

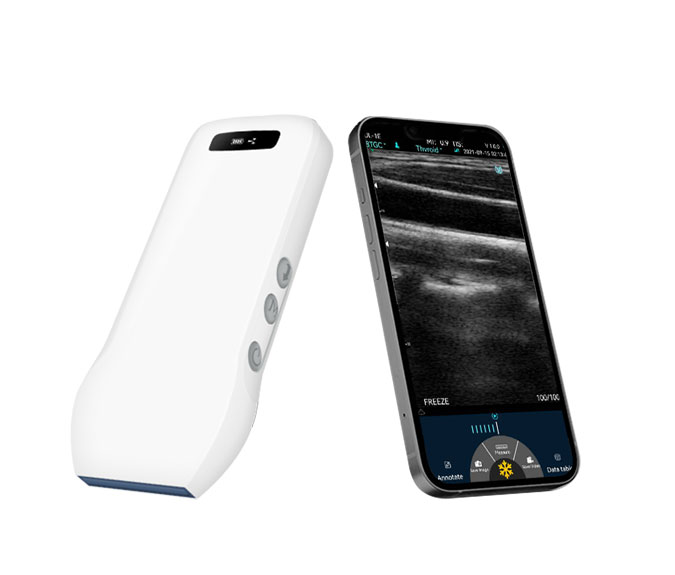

curved linear ultrasound probe

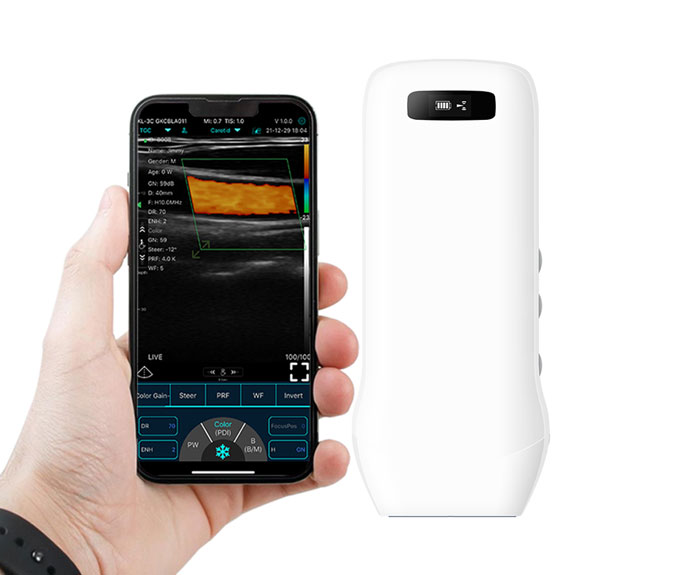

curved linear array transducer

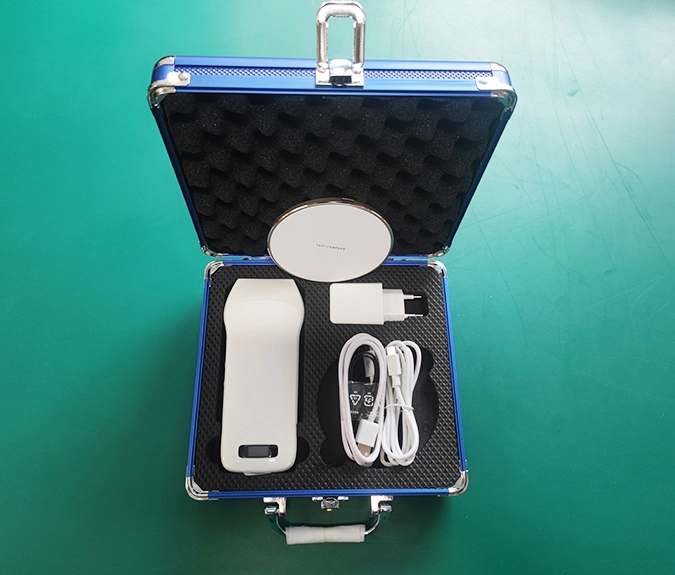

ln1

Specification of C10LN B&W Superfical Ultrasound Basic Linear Probe

Product specs:

Probe

Wireless linear probe

Elements

128

Frequency

7.5-10Mhz

Depth

40-100mm

PresetsThyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve

Host

IOS/Android/Windows, Tablet, Smart phone, PC

Connection

WiFi

Software Adjustable Parameters

GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote

Measurement

B: Length, Area, Circumference, Angle, Trace, Distance

B+M: Heart rate, Time, Distance

Playback Frames

100, 200, 500, 1000 optional

Display Mode

B, B/M

WiFi Type

Built-in WiFi, 802.11g/20MHz/2.4G/450Mbps

Channel

32

Frame

24s/f

Gain

40-110Db

Language

Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)

Power

by built-in 4200mAh battery

Battery Replaceable

Yes

Battery Last

3hours (Working time), 12hours (Stand by time)

Charger

Wireless charger




Features of C10LN B&W Superfical Ultrasound Basic Linear Probe

Features of C10LN B&W Superfical Ultrasound Basic Linear Probe
  • Multiple System platform

    Connection with Android/IOS/Windows Smartphone, tablet, PC.

  • Easy to operate and carry

    Small size and light 200g~240g,Wireless use.

  • High Definition image

    80-128-192 elements, Level 4 image optimization technology.

  • High cost-effective

    Basic ultrasound start at $700/set.

  • 14+ presets

    Applicable in emergency, clinic, outdoor and vet inspection.

  • Manage your patient information

    Save and share image/video, print the patient report.

B&W Superfical Ultrasound Video Display

Linear Probes Cardiac B
Linear Probes Cardiac B
