C10MR USB&Wifi High Linear Ultrasound Probe

C10MR skin ultrasound is our first ultrasound probe designed for facial aesthetics. It can be applied in aesthetic surgery, such as acne scars, non-ablative skin resurfacing, skin lifting & tightening, etc. Users can learn about various facial muscles, nerves, and other structures by using C10MR aesthetics ultrasound probe. Inject different drugs according to different conditions. Like the more common collagen or Botulinum toxin and others. C10MR USB&Wifi aesthetics ultrasound probe is particularly suitable for evaluating the extent and depth of deep skin lesions and swelling. In a word, Dermatologic ultrasound plays an important role in making cosmetic surgery safer and more effective than ever before.

Ultrasonic facial treatment is a nourishing, anti-aging facial treatment procedure that complements deep cleansing of the face and microdermabrasion treatments. This facial treatment promotes cell renewal and repair, tones facial muscles, increases blood circulation, promotes lymphatic drainage, combats puffiness, and swelling, and improves the penetration of skin care products. Positive effects on connective tissue fibers, making the skin firmer, younger, and more elastic.

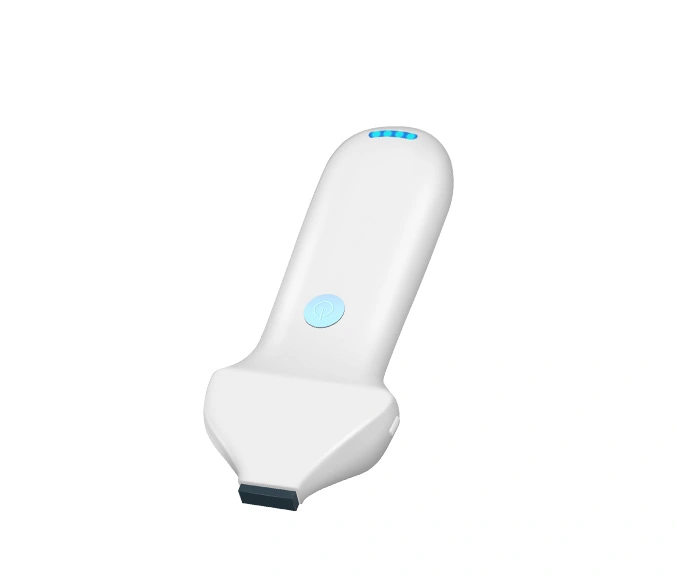

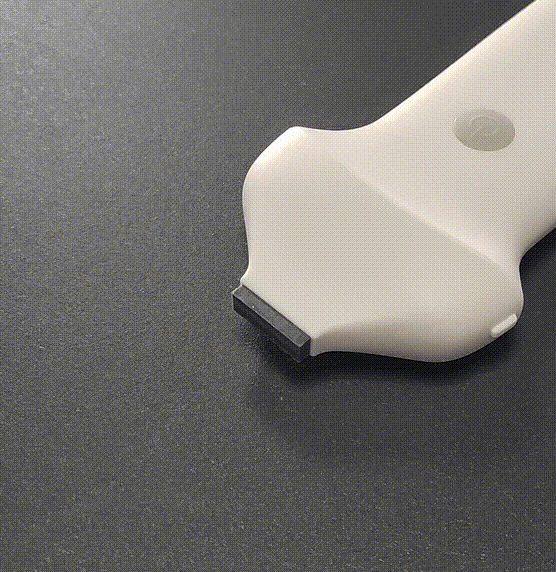

wireless high linear ultrasound1
wireless high linear ultrasound

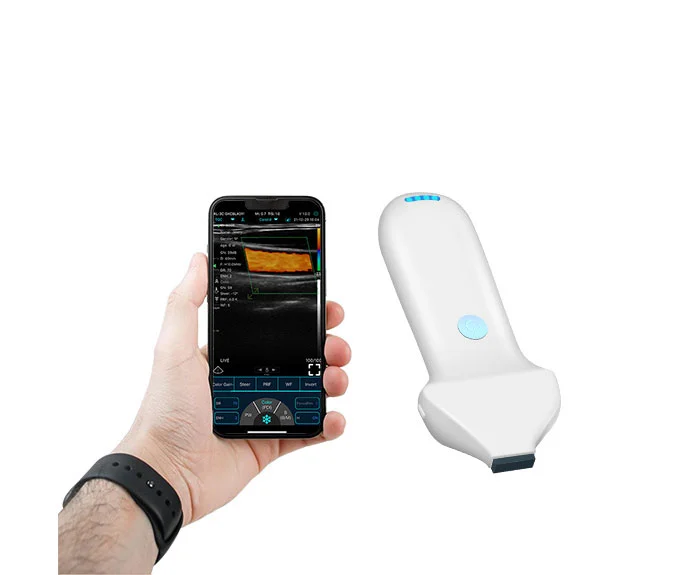

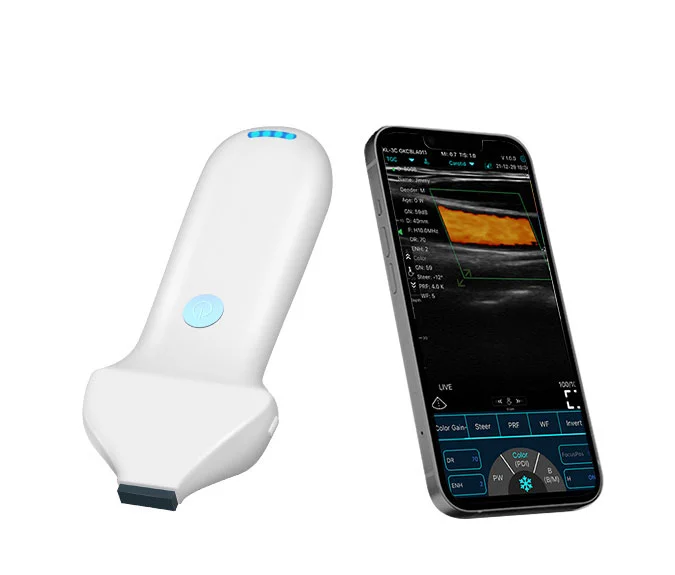

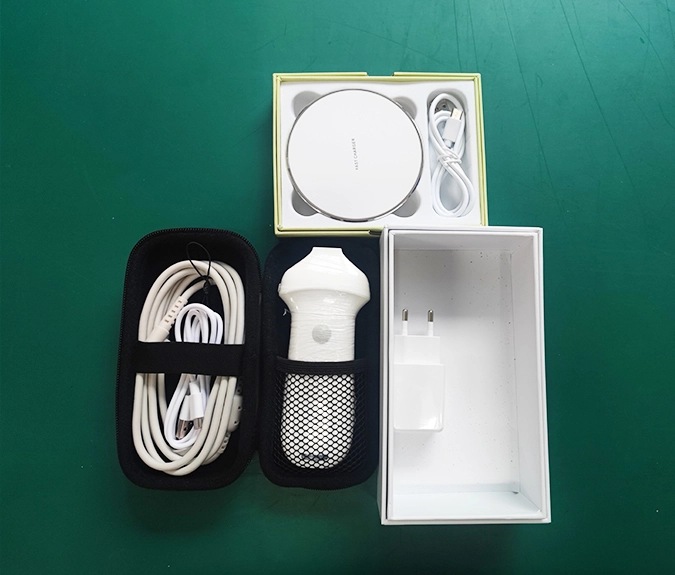

wireless high linear ultrasound2

Specification of C10MR USB&Wifi High Linear Ultrasound Probe

ModelC10MR
Probe TypeHigh Frequency Linear Probe
Software SystemsAndroid. IOS. Windows
Probe Button-Power on/off
-Freeze/unfreeze
*ConnectionWi-Fi
USB
Wi-Fi Type802.11n/20MHz/
2.4G/5G
Frequency18/24Mhz
Scan Depth1-25mm
LengthL18*W5mm
Elements192
DR40-110Db
Dimensions155x65x25mm
Weight155g
Waterproof Grade

IP68

Display ModeB
B+B
B+M
Color
PW
PDI
*Dual&Full screen Display
Software Control
B GN(Gain)
Color GN(Gain)
D(Depth)
ENH(Enhancement)
DR(Dynamic Range)
H(harmonic)
Focus
8 TGC
Mid-Line
An note
Page Left/Right Up/Down












*Body Mark
Dicom
Image storageJPEG, MP4, Dicom
Clip LoopAutomatic / manual
100-200-500-1000 frame
Frame rate18~24 F/S
PresetsThyroid, SmallParts, Pediatrics, Vascular, Carotid, Breast, MSK, VesselFlow, Nerve
MeasuresB: Length, Distance,Area/Circumference, Trace,Depth, Angle,
B+M: HeartRate, Time, Distance, LVID
B+PW:Velocity, Heart Rate(2), S/D, Depth, Time.
Measure Magnify
*Built in cooling coating
*Working While charging
BatteryBuilt-in High capacity Lition batteries
2200 mAh,
Power Consumption3 W (Live) / 1 W (freeze)
Continuous hours of scanning2h
48h Ultra-long standby
Recharge time2h
*ChargingType-C USB
Wireless charging
LanguageChinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)


Konted C10MR High-frequency linear array probes Ultrasound Features

Konted C10MR High-frequency linear array probes Ultrasound Features

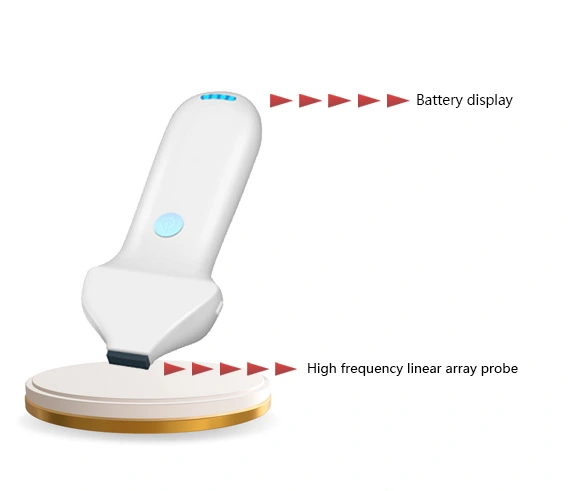

  • High-frequency linear array probes

    18-24 Mhz,Scan Depth 1~25mm

  • Only 155g, smaller than iphone, easy to carry.

    Easy to operate and carry.

  • B,B+B,B+M,Color PW,PDI

    Multiple ultrasound mode adjustments, equipped with color ultrasound function, convenient for doctors to treat.

  • WiFi&USB, 2 connection methods, support working while charging

    Wireless charging and wired charging take the same time.

C10MR facial ultrasound

C10MR facial ultrasound
  • Built-in High capacity Lition batteries 2200 mAh

    4h working time 72h Ultra-long standby.

  • Help doctors better treat acne and clogged hair follicles

    Relieve and improve clogged hair follicles by unblocking clogged pores.

  • Observe and assist in stimulating collagen production and reorganizing surrounding skin

    By using high-strength ultrasound to reach the dermis, it stimulates the collagen structure of the skin, reduces the molecular spacing of collagen, and promotes recombination.

  • Assist facial cleaning and prevent skin diseases
  • Soft tissue assessment via ultrasound to guide treatment of prepaid dermatology

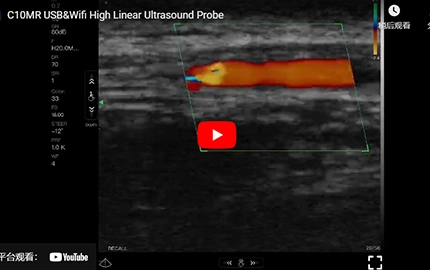

C10MR USB&Wifi High Linear Ultrasound Probe Demo

C10MR USB&Wifi High Linear Ultrasound Probe Demo
C10MR USB&Wifi High Linear Ultrasound Probe Demo
