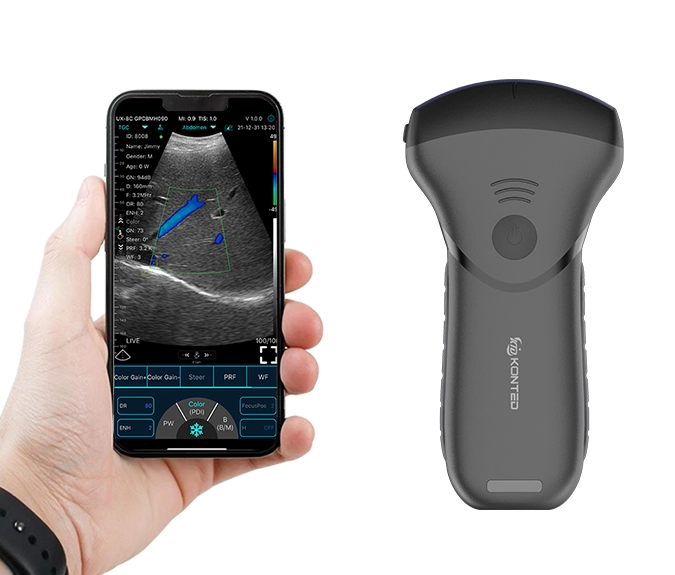

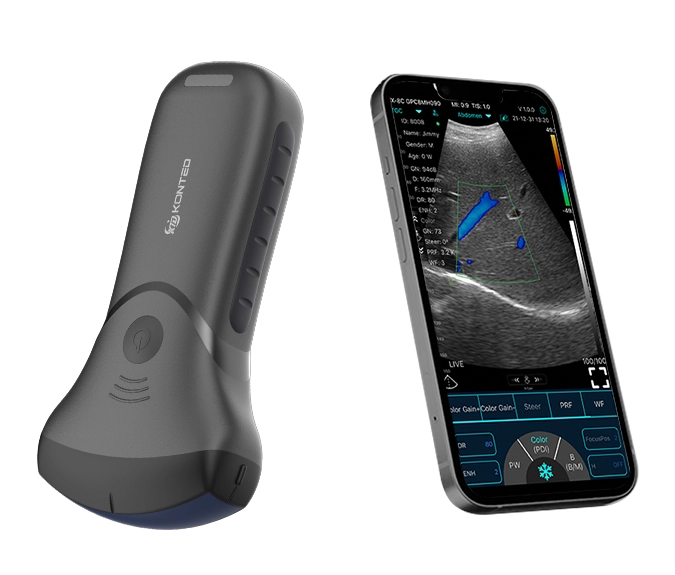

On the basis of C10CT, we have upgraded it and named it C10MT. We have added a dual battery design, increased battery life, and added a 4-sided anti slip design, achieving a waterproof level of IP68. Konted C10MT is a convex array wireless ultrasound scanner designed by Konted for the human abdominal diagnosis market.
Product specs:
| Probe | Wireless Convex probe |
| Elements | 128 |
| Frequency | 3.5-5Mhz |
| Depth | 90-160-240-300mm |
| Dimensions | 140*60*30mm |
| Weight | 230g |
| Presets | Abdomen, Gynecology, Obstetric, Cardiac, Urology, Kidney, Lung, User1, User2 |
| Host | IOS/Android/Windows, Tablet, Smart phone, PC |
| Connection | WiFi |
| Software Adjustable Parameters | GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote |
| Measurement | B: Length, Area, Circumference, Angle, Trace, Distance |
| B+M: Heart rate, Time, Distance | |
| B+PW:Velocity,Heart rate(2), S/D, Depth | |
| Playback Frames | 100, 200, 500, 1000 optional |
| Display Mode | B, B/M, Color, PW, PDI, B+B |
| WiFi Type | Built-in WiFi, 802.11g/20MHz/5G/450Mbps |
| Channel | 32 |
| Frame | 24s/f |
| Gain | 40-110Db |
| Language | Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil) |
| Power | Lithium Battery Capacity:4400mAh |
| Battery Replaceable | Yes |
| Battery Last | 4hours (Working time), 72hours (Stand by time) |
| Charger | Wireless charger, USB cable |
| Cooling coating | Yes |
| Waterproof | IP68 |
| Anti-skid design | Yes 4 sides |
