Dual Probes Multipurpose Ultrasound

Dual Probes Multipurpose Ultrasound

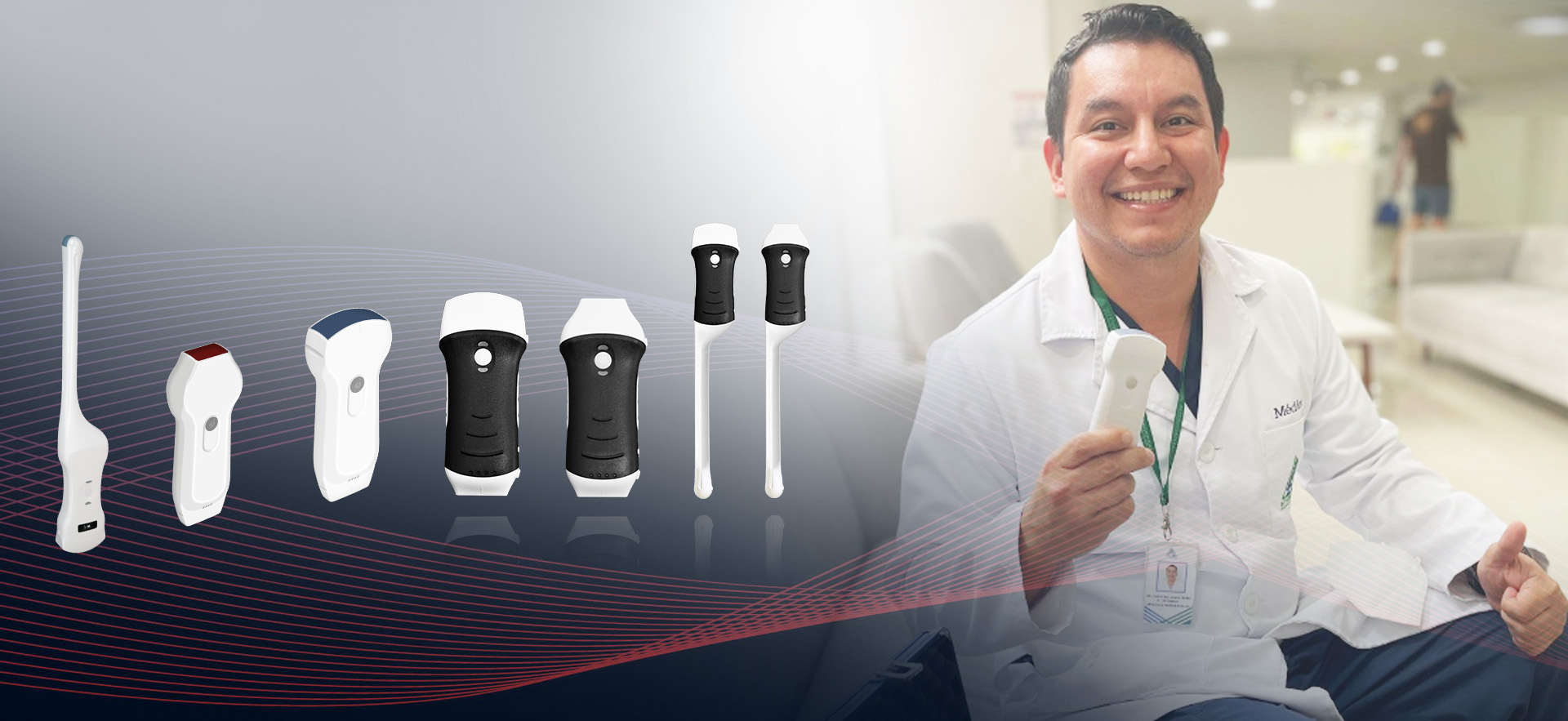

Dual probe design in order to enable doctors to quickly diagnose patients, one host integrates two different scanning probes, which can help doctors see more body image details. You can choose convex+linear probe, convex+trans-vaginal probe, cardiac+linear probe, cardiac+trans-vaginal probe and so on.

Different Types of Dual Probes Multipurpose Ultrasound

Difference Between KONTED Types of Dual Probes Multipurpose Ultrasound

C10RL, C10XL C10QT, C10TX C10HL, C10RC are multi-function color ultrasound, Their application fields are different, and their parameter specifications are also different. C10TX,C10HL,C10RC on the basis of the original increase anti-skid design and waterproof grade. The C10RL and C10TX have the same specifications and the same application areas, their probe type is convex+linear+cardiac, element is 128, scan freq is Convex:3.5/5Mhz, Linear:7.5/10Mhz, Cardiac:2.5/5Mhz, scan depth is Convex:90-305mm Linear:20-100mm Cardiac:90-160mm, footprint is L25, radius is R45. The C10XL and C10HL have the same specifications and the same application areas, their probe type is convex+linear+cardiac, element is 128, scan freq is Linear:7.5/10Mhz, Cardiac+convex:2.3/3.6Mhz, scan depth is Linear:20-100mm Cardiac+convex:90-240mm, footprint is L25, C10QT probe type is Convex+TVS+cardiac, element is 192. C10RC probe type is Convex+trans-vaginal.


ModelC10RLC10XLC10QTC10TXC10HLC10RC
Probe typeConvex+linear+cardiacLinear+phased+convexConvex+TVS+cardiacConvex+linear+cardiacLinear+phased+cardiacConvex+trans-vaginal
Elements128128192128128128
Scan FreqConvex:3.5/5Mhz Linear:7.5/10MhzLinear:7.5/10MhzConvex:3.5/5Mhz TVS:7.5/10MhzConvex:3.2/5Mhz Linear:7.5/10MhzLinear:7.5/10MhzConvex:3.2/5MhzTrans-vaginal:6.5/8Mhz
Cardiac:2.5/5MhzCardiac:2.3/3.6MhzCardiac:2.5/5MhzCardiac:2.5/5MhzCardiac:2.2/3.6Mhz
Scan DepthConvex:90-305mm Linear:20-100mm Cardiac:90-160mmLinear:20-100mm Cardiac:90-240mmConvex:90-305mm TVS:30-120mm Cardiac:90-160mmConvex:90-305mm Linear:20-100mm Cardiac:90-160mmLinear:20-100mm  Cardiac:90-240mmConvex:90-305mm Trans-vaginal:40-100mm
Footprint/RadiusL25/R45L25R60/R10L25L25R60/R10
Anti skid Design


4 sides of probe4 sides of probe4 sides of probe
Waterproof Grade
IPX7
IPX7IPX7IPX7
ApplicationConvex array probe:Phased array probe:

Convex array probe

:Abdomen, Gynecology, Obstetric, Cardiac, Urology,Kidney, Lung


Convex array probe:Phased array probe:Abdomen. Gynecology.
Abdomen, Gynecology, Obstetric, Cardiac, Urology,Kidney, Lung Abdomen. Cardiac.Abdomen, Gynecology, Obstetric, Cardiac, Urology,Kidney, Lung Abdomen. Cardiac.Obstetric. Cardiac. Urology.
Linear probe:Linear probe:
Linear probe:Linear probe:
Kidney. Lung
Thyroid. Small parts. Pediatrics. Vascular. Carotid. Breast.Thyroid. Small parts. Pediatrics. Vascular. Carotid. Breast.Thyroid. Small parts. Pediatrics. Vascular. Carotid. Breast.Thyroid. Small parts. Pediatrics. Vascular. Carotid. Breast.
