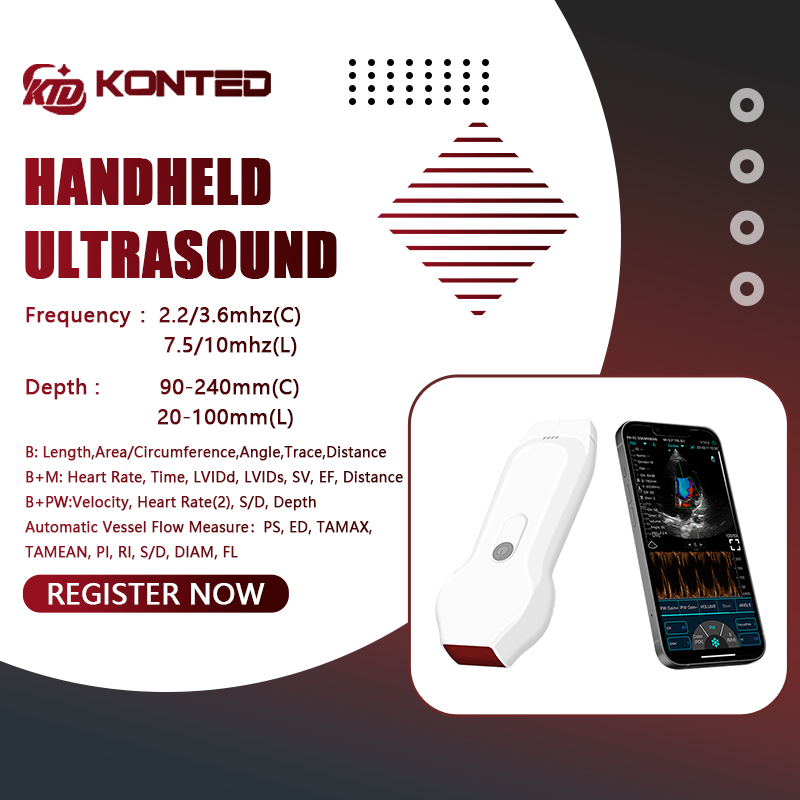

C10XL Dual-Probes Multipurpose Ultrasound Phased + Linear Probe

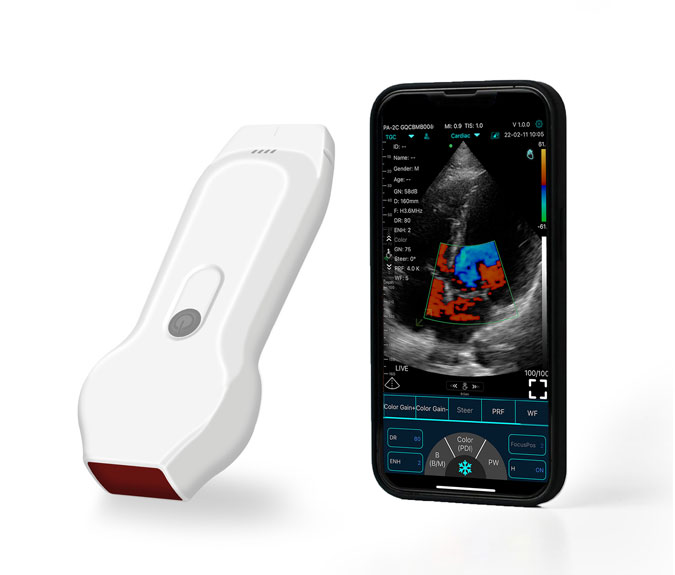

Mini wireless Cardiovascular ultrasound, multipurpose dual head linear+cardiac Ultrasound probe can provide you with HD heart images. The C10XL, as a kind of wifi ultrasound probe, is a combination of two probes, one side of the phased array probe and the other side of the line array probe.

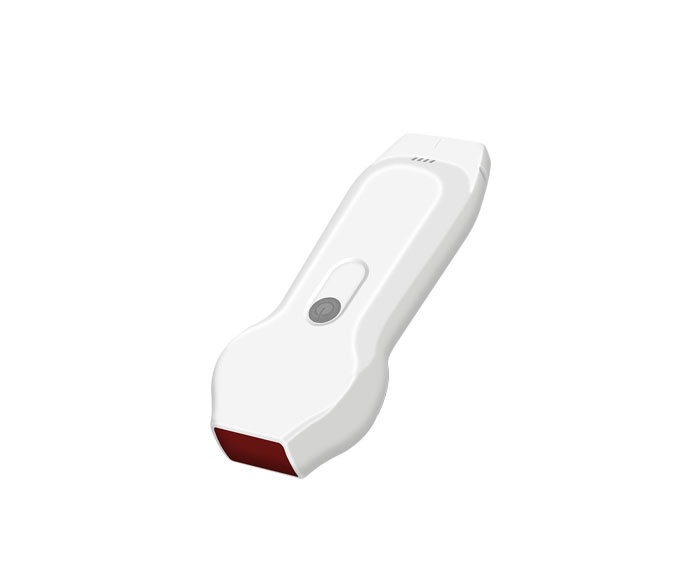

buy smartphone ultrasound

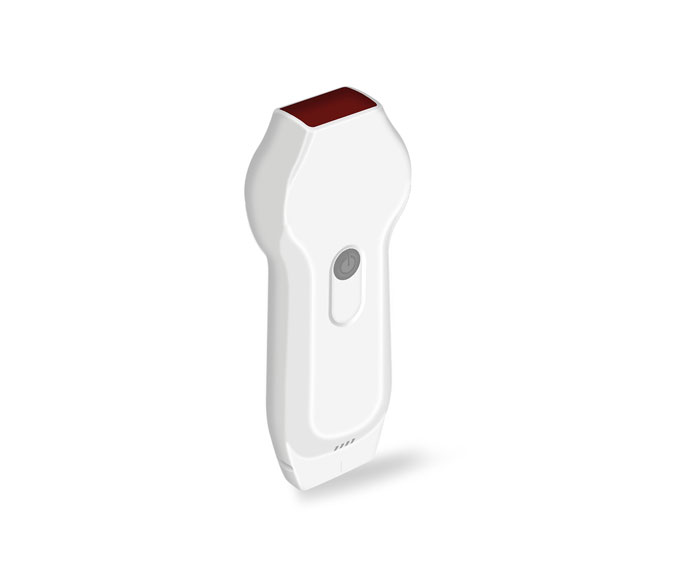

smartphone ultrasound for sale
pocket ultrasound device

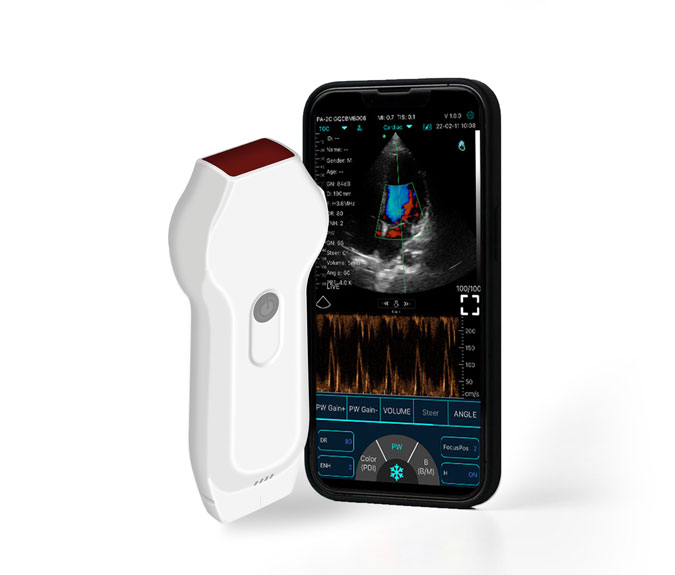

smartphone ultrasound

Specification of C10XL Dual-probes Multipurpose Ultrasound linear+phased probe

Product specs:

ProbeWireless dual head phased+linear probe
ElementsDual 128
Frequency2.2-3.6mhz, 7.5/10mhz
Depth90-190mm, 20-100mm
HostTablet, Smart phone, PC
ConnectionWiFi*USB
Software Adjustable ParametersGN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down.
MeasurementB: Length,Area/Circumference,Angle,Trace,Distance
B+M: Heart Rate, Time, LVIDd, LVIDs, SV, EF, Distance
B+PW:Velocity, Heart Rate(2), S/D, Depth
Auto vessel flow measure: PS, ED, TAMAX, TAMEAN, PI, RI, S/D, Diam, Flow
Playback Frames100, 200, 500, 1000 optional
Display ModeB, B/M, color, PW, PDI
Image Savejpg, avi, Mp4 and DICOM format
Image Gray Scale256 level
WiFi TypeBuilt-in WiFi, 802.11g/20MHz/2.4G/5G/450Mbps
Channel64
Frame24s/f
Gain40-110Db
LanguageEnglish, Chinese,Russian, German, Italian, Spanish, Portuguese
Powerby built-in battery
Power Consumption4W (probe run) /1.5W (probe stop)
Battery ReplaceableYes
Battery Last3 -4 hours

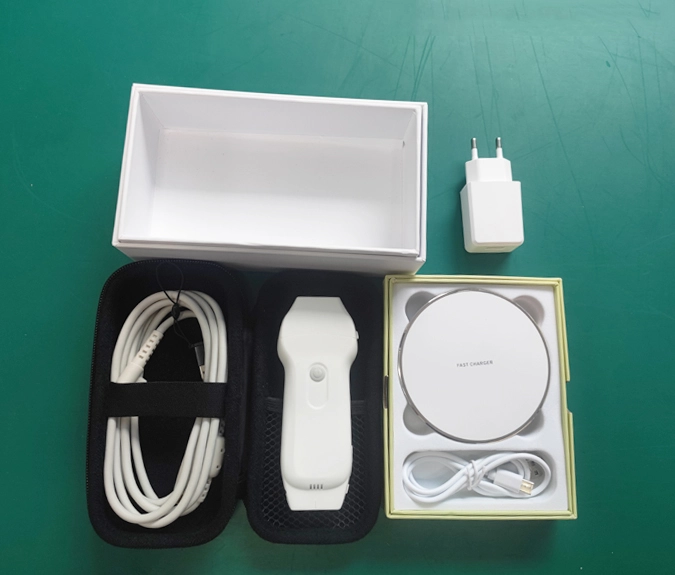

ChargerUSB Charger, wireless charger

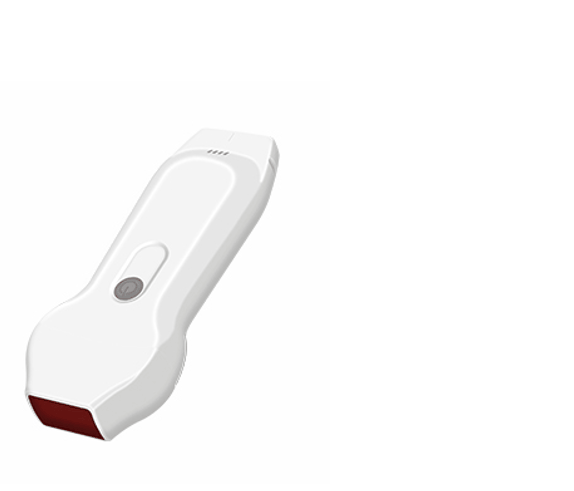

Features of C10XL Dual-probes Multipurpose Ultrasound linear+phased probe

Features of C10XL Dual-probes Multipurpose Ultrasound linear+phased probe
  • Support Wireless charger, USB charger
  • Compatible with IOS Android Windows system, available tablet, laptop, mobile phone, PC, etc._copy20221115
  • Waxing design, waterproof function and prevent probe from getting hot_copy20221115
  • 2 batteries for longer usage time_copy20221115

linear+phased probe

linear+phased probe
  • Support Wireless charger, USB charger
