C10RL Dual-Probes Multipurpose Ultrasound Convex +Linear+ Cardiac Probe

The Konted C10RL is a combination of two probes, one side of the convex array probe and the other side of the line array probe, and the convex array probe has a cardiac preset function.The Konted C10RL is a wireless ultrasound scanner with dual probe, 3 in 1 multipurpose handheld convex+linear+cardiac whole body ultrasound scan.

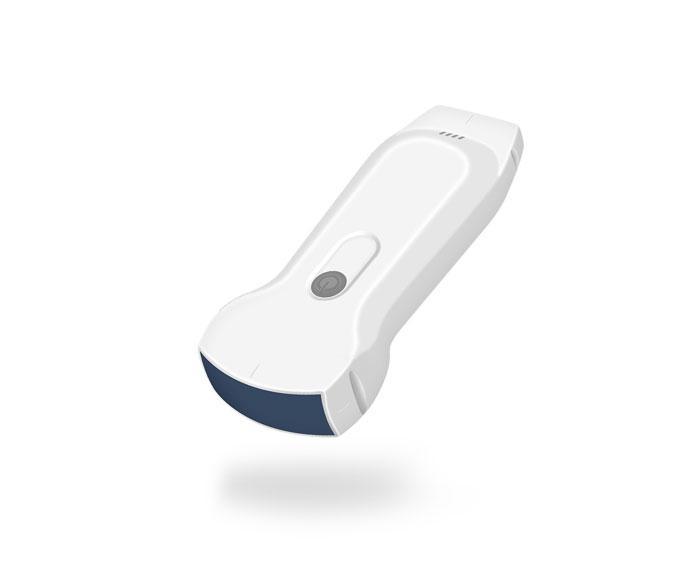

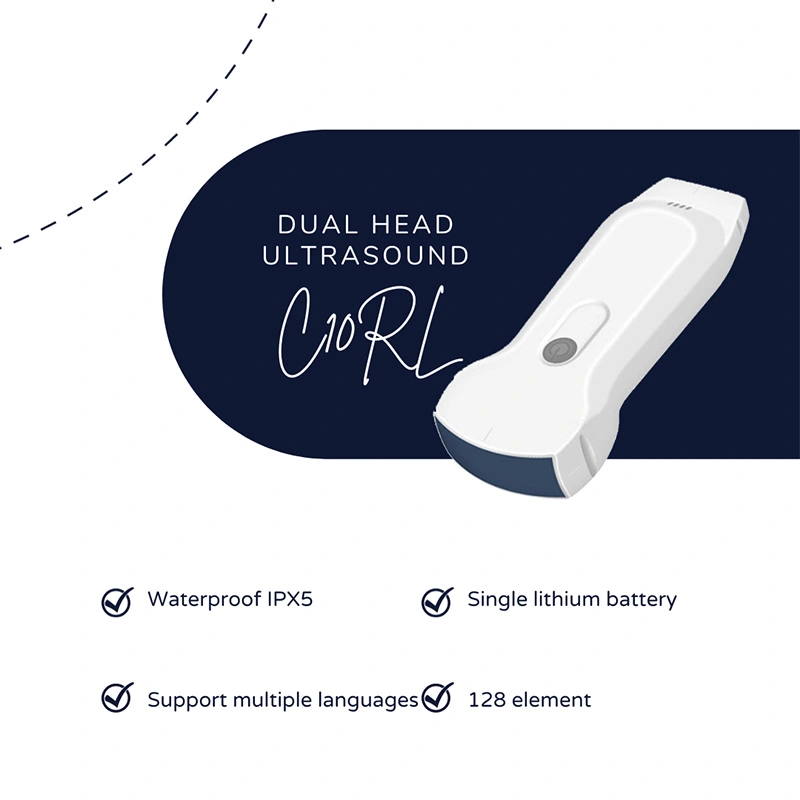

Konted handheld ultrasound probe C10RL

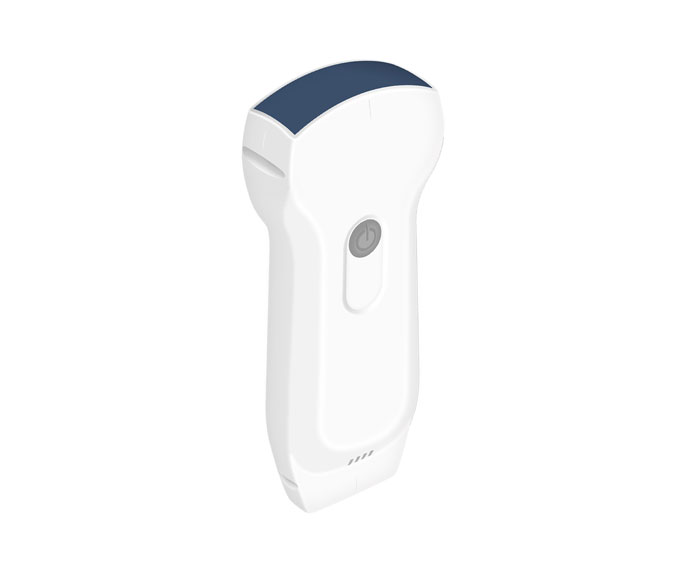

Konted C10RL handheld ultrasound  for sale

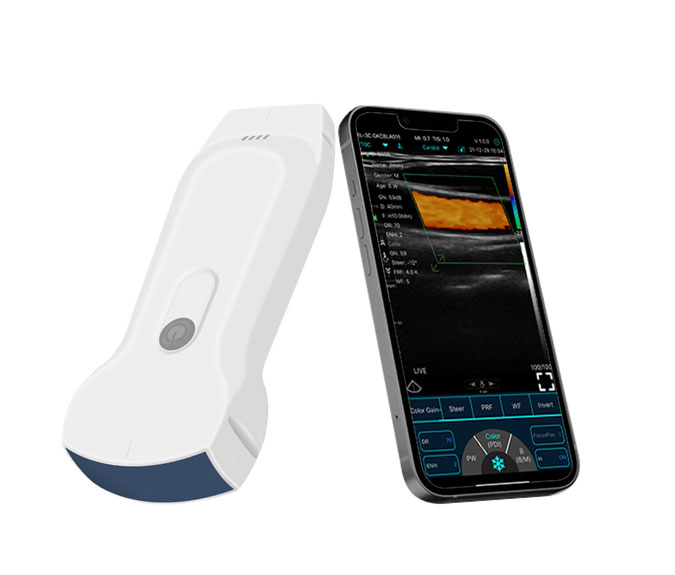

Konted C10RL mobile ultrasound equipment

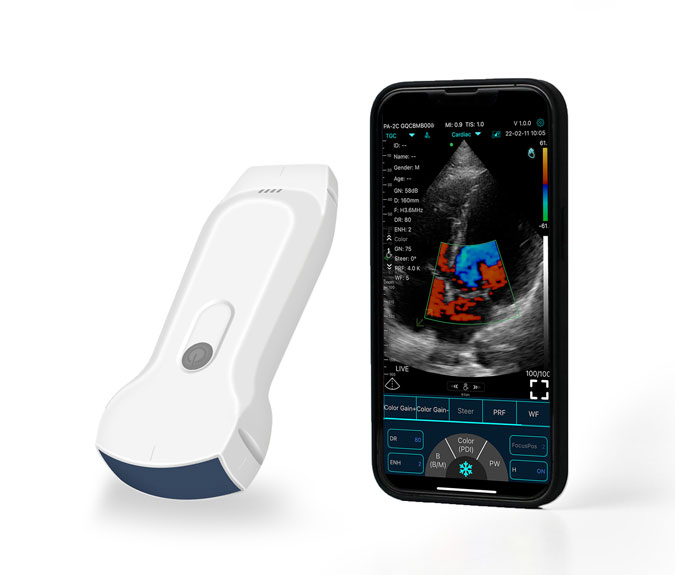

Konted C10RL mobile ultrasound device
Konted C10RL
Konted C10RL wireless ultrasound scanner with dual probe

Konted C10RL Dual-probes Multipurpose Ultrasound Specifations

Product specs:

ProbeWireless dual head convex+linear probe
ElementsDual 128
Frequency3.5/5.0mhz, 7.5/10mhz,2.5/5.0mhz
Depth90-305mm, 20-100mm, 90-160mm
Preset 16+

Abdomen, GYN, OB, Cardiac, Urology, Kidney, Lung, User1, User2
Thyroid, Small parts, pediatrics, Vascular, Carotid, Breast, Msk, Nerve, User1, User2

HostTablet, Smart phone, PC
ConnectionWiFi&USB
Software Adjustable ParametersGN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down.
Measurement

B: Length, Area/Circumference, Angle, Trace, Distance GA(CRL,BPD,GS,FL,HC,AC)EFW(BPD,FL)
B+M: Heart rate, Time, Distance, LVID(LVIDd, LVIDs, EF, SV)
B+PW: Velocity, Heart rate(2), S/D, Depth.
Automatic Vessel Flow Measure:PS, ED, TAMAX, TAMEAN, PI, RI, S/D, DIAM, FL

Playback Frames100, 200, 500, 1000 optional
Display ModeB, B+B, B/M, Color, PW, PDI, B+Color+PW
Image Gray Scale256 level
WiFi TypeBuilt-in WiFi, 802.11g/20MHz/2.4G/5G/450Mbps
Channel64
Frame24f/s
Gain40-110Db
LanguageChinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)
Powerby built-in Lithium battery
Battery ReplaceableYes  (by engineer)
Battery Last3hours (Working time), 12 hours(Stand by time)
ChargerUSB Charger, wireless charger
Waterproof GradeIPX5

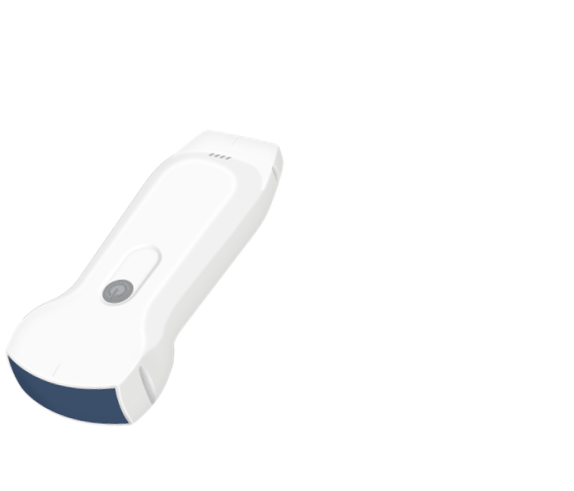

Konted C10RL Dual-probes Multipurpose Ultrasound Features

Konted C10RL Dual-probes Multipurpose Ultrasound Features
  • Dual head convex + linear + cardiac preset 3 in 1 probe

    Check abdominal organs, heart, muscles and nerves, etc.

  • Only 120g, smaller than iphone, easy to carry

    Konted Ultrasound adopts lightweight design and easy to carry every day.

  • B, B+B, B/M, Color, PW, PDI, B+Color+PW mode

    Multiple ultrasound mode adjustments, equipped with color ultrasound function, convenient for doctors to treat.

  • WiFi&USB, 2 connection methods, support working while charging

    Wireless charging and wired charging take the same time.

Convex+linear probe

Convex+linear probe
  • Hemodynamic monitoring to confirm whether blood vessels are blocked

    Early diagnosis of sclerosing obliterans, carotid artery occlusive disease, coronary heart disease, and myocardial infarction.

  • The urinary system can be observed, including the kidneys, ureters, bladder and urethra

    Check whether the patient suffers from cystitis, urethritis, uremia and other diseases.

  • Assist doctors to find the location of ascites and prescribe appropriate medicine.

    Ascites may be a cause of heart disease, liver disease, and kidney disease.

  • Provides a clear diagnosis, including ganglion cysts, joint effusions, rheumatic diseases

    The above lesions are caused by the formation of excessive joint effusion.
