C10HL New Dual-probes Multipurpose Ultrasound Phased + Linear Probe

C10HL portable ultrasound probe can establish wired or wireless connections with mobile phones, iPads, or PCs. This IPX7 waterproof device allows you to scan any body part at any time and any place. On the other hand, the newest handheld bluetooth ultrasound probe provides the latest mini-wireless cardiovascular ultrasound. The multipurpose dual head linear+cardiac ultrasound probe can offer you high-definition images of the heart and assists with heart function assessments using the dual-head cardiac ultrasound.


Our product line includes a range of devices like handheld ultrasound probe, linear ultrasound probe, and Bluetooth ultrasound device, each equipped with features and functionalities designed to streamline diagnostic procedures and provide clearer, more accurate images.  If you're looking for high-quality linear probes ultrasound or any other ultrasound device, please don't hesitate to inquire about our products - we're always happy to help!

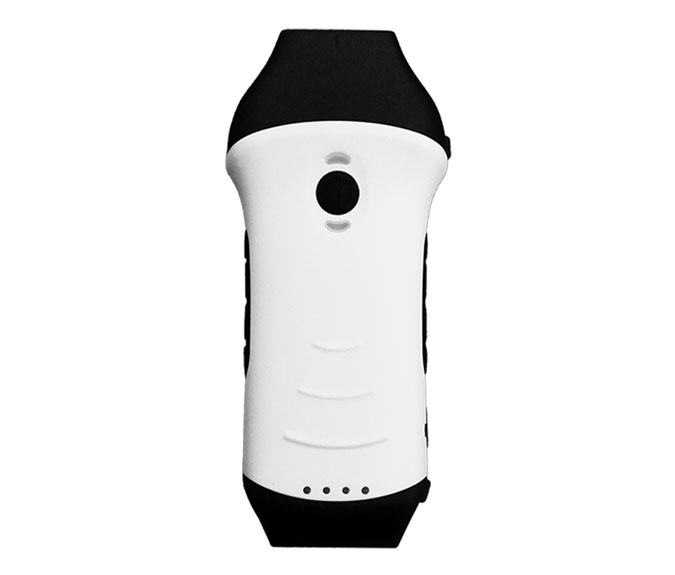

bluetooth ultrasound probe

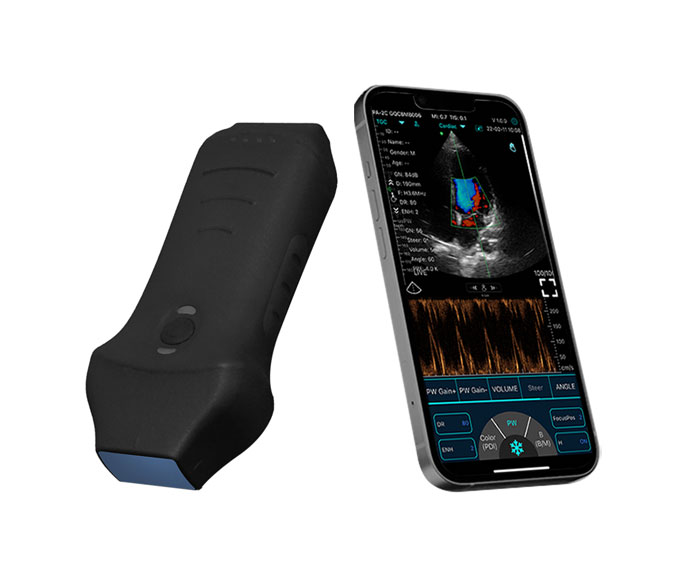

bluetooth ultrasound device

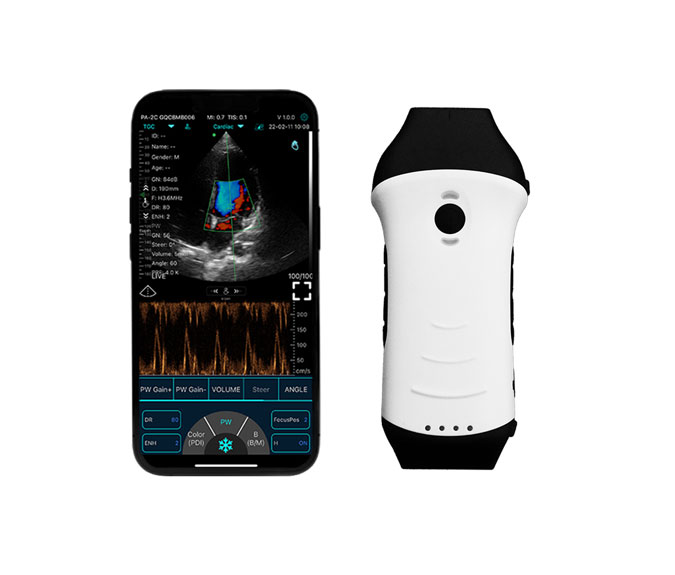

handheld wireless ultrasound

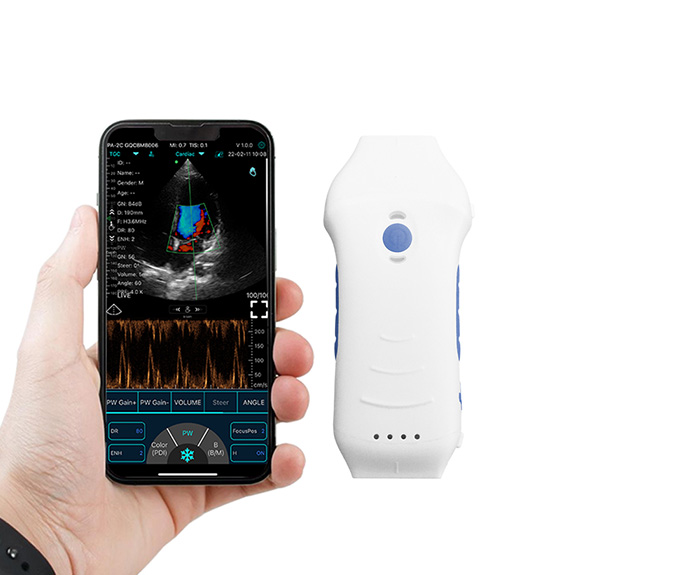

handheld wireless ultrasound probe 1

Specification of C10HL Dual-probes Multipurpose Ultrasound linear+phased probe

Product specs:

ProbeWireless dual head phased+linear probe
ElementsDual 128
Frequency2.2-3.6mhz, 7.5/10mhz
Depth90-190mm, 20-100mm
Preset 10+
Abdomen, Cardiac, User1, User2
Thyroid, Small parts, pediatrics, Vascular, Carotid, Breast, Msk, Nerve, User1, User2
HostTablet, Smart phone, PC
ConnectionWiFi&USB
Software Adjustable ParametersGN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down.
MeasurementB: Length,Area/Circumference,Angle,Trace,Distance
B+M: Heart Rate, Time, LVIDd, LVIDs, SV, EF, Distance
B+PW:Velocity, Heart Rate(2), S/D, Depth
Automatic Vessel Flow Measure:PS, ED, TAMAX, TAMEAN, PI, RI, S/D, DIAM, FL
Playback Frames100, 200, 500, 1000 optional
Display ModeB, B/M, color, PW, PDI
Image Savejpg, avi, Mp4 and DICOM format
Image Gray Scale256 level
WiFi TypeBuilt-in WiFi, 802.11g/20MHz/2.4G/5G/450Mbps
Channel64
Frame24s/f
Gain40-110Db
LanguageChinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)
Power* by built-in 2 Lithium batteries
Power Consumption3W (probe run) /1W (probe stop)
Battery ReplaceableYes (by engineer)
Battery Last* 4hours (Working time), 72 hours(Stand by time)
ChargerType-C USB Charger, wireless charger
Anti skid Design* 4 sides of probe
Waterproof grade* IP68
Built-in cooling coating* Yes



Features of C10HL Dual-probes Multipurpose Ultrasound linear+phased probe

Features of C10HL Dual-probes Multipurpose Ultrasound linear+phased probe
  • Wireless charger, USB charger.

    Wireless charging and wired charging take the same time.

  • Compatible with IOS Android Windows system, available tablet, laptop, mobile phone, PC, etc.

    Adaptable to different systems, everyday smart devices can be connected.

  • Waxing design, waterproof function and prevent probe from getting hot

    Even if the machine is soaked in water, it will not affect its use.

  • 2 batteries for longer usage time

    Can work continuously for 4 hours

C10HL Dual head ultrasound scanner

C10HL  Dual head ultrasound scanner
  • Thyroid ultrasound can be done

    Convenient for checking thyroid nodules, goiter and other lesions.

  • Applying Doppler imaging to cardiac ultrasound makes it easier for doctors to check blood flow

    It is convenient for doctors to check blood viscosity, often including plasma viscosity, red blood cells and platelets under different pressures.

  • Assist in the teaching of anatomy and physiology

    Let students understand the basic physiological structure of the human body through images.

  • Effectively assess cardiac left ventricular function

    Provide treatment options for dilated cardiomyopathy, pericardial effusion, and thick cardiomyopathy.

  • Musculoskeletal imaging (MSK), imaging of certain blood vessels (such as carotid arteries)

C10HL New Dual-probes Multipurpose Ultrasound Phased + Linear Probe Video

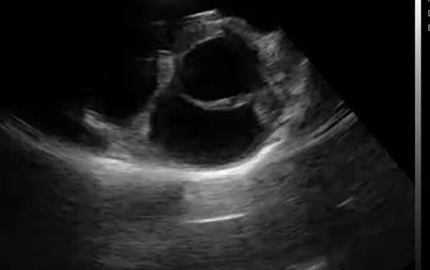

Whole Abdomen Scan Cost B Gallbladder
Whole Abdomen Scan Cost B Gallbladder

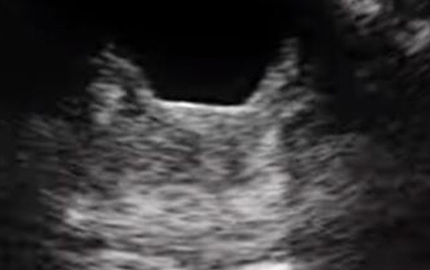

Handheld Portable Ultrasound Device Bladder Prostate Ascites
Handheld Portable Ultrasound Device Bladder Prostate Ascites
Handheld Portable Ultrasound Machine
Handheld Portable Ultrasound Machine

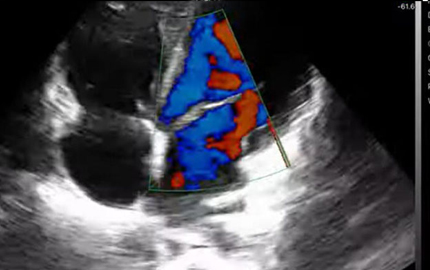

Handheld Ultrasound Device Cardiac C
Handheld Ultrasound Device Cardiac C

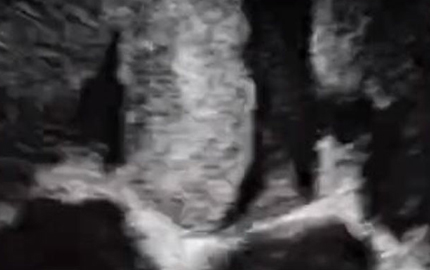

Handheld Ultrasound Machine HCM
Handheld Ultrasound Machine HCM

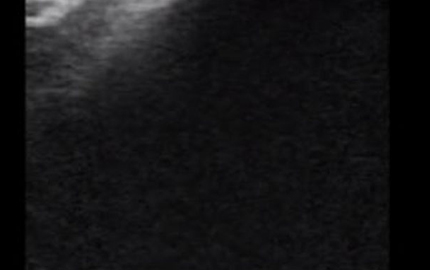

Handheld Ultrasound Scanner MSK
Handheld Ultrasound Scanner MSK

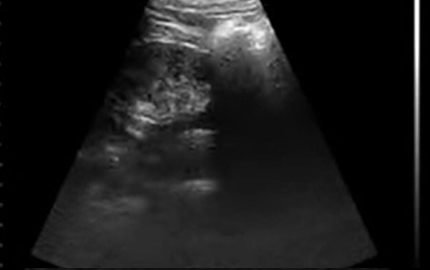

Hand Held Ultrasound Kidney
Hand Held Ultrasound Kidney

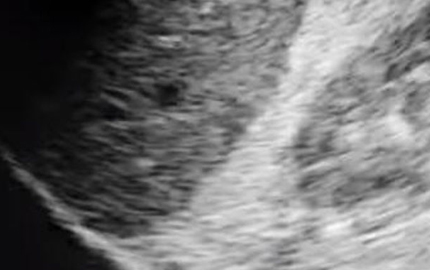

Handheld Medical Ultrasound HCM Pleural Effusion
Handheld Medical Ultrasound HCM Pleural Effusion

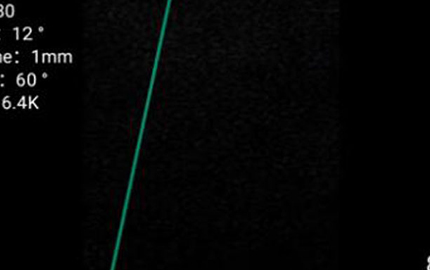

Handheld Portable Ultrasound Pw Carotid Artery
Handheld Portable Ultrasound Pw Carotid Artery

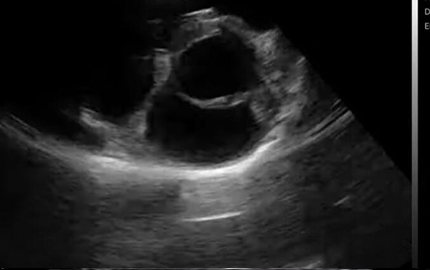

Linear Probes Cardiac B
Linear Probes Cardiac B
