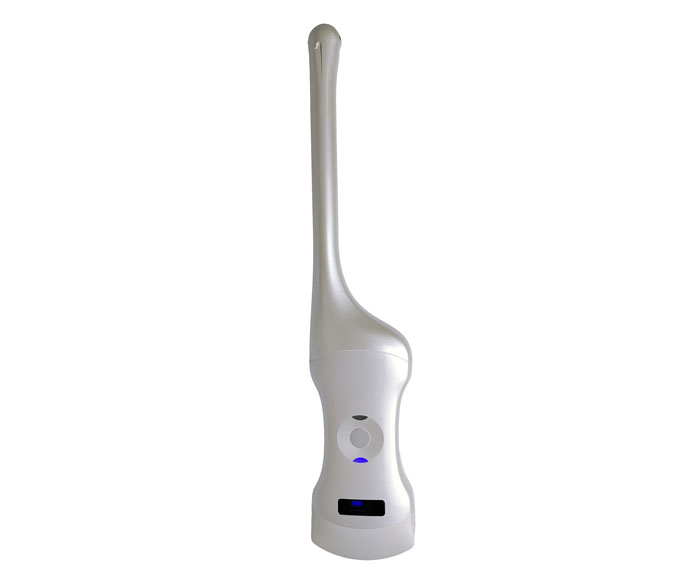

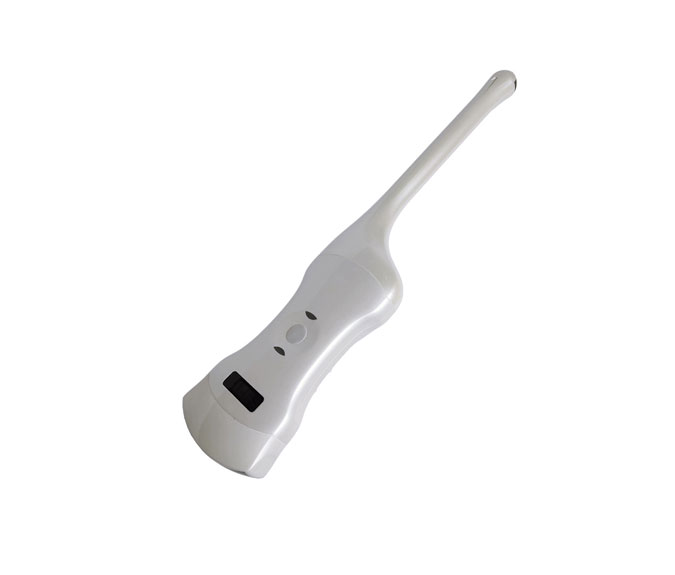

One significant feature of the mini wireless OB&GYN ultrasound probe is its multipurpose dual head.The multipurpose dual head convex+endocavity+cardiac Ultrasound probe can function as a convex and endocavity probe, as well as a specialized probe for cardiac imaging. This instrument is capable of producing high definition fetal images, and it can also perform ring check pregnancy inspections, monitor fetal development and heart rate, and provide visualization guidance for abortions that require curettage using a cardiac probe.
Product specs:
| Probe | Wireless dual head convex + TV probe |
| Elements | 192 |
| Frequency | 3.5-5Mhz,2.5-5Mhz, 6-8Mhz |
| Depth | 90-160-220-305mm, 90-120-140-160mm,30-60-90-120mm |
| Presets | Abdomen, Gynecology, Obstetric, Cardiac, Urology, Kidney, Lung, User1, User2 |
| Host | Tablet, Smart phone, PC |
| Connection | Wifi |
| Software Adjustable Parameters | GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down. |
| Measurement | B: Length, Area / Circumference ,Angle, Trace, Distance, GA(CRL, BPD, GS, FL, HC, AC), EFW (BPD, FL) |
| B+M: Heart rate, Time, Distance | |
| B+PW: Velocity, Heart rate(2), S/D, Depth | |
| Playback Frames | 100, 200, 500, 1000 optional |
| Throughout | 150Mbit/s |
| Field of View | 80 degree |
| Display Mode | B, B/M, color, PW, PDI |
| Image Gray Scale | 256 level |
| WiFi Type | Built-in WiFi, 802.11g/20MHz/2.4G/5G/450Mbps |
| Channel | 64 |
| Frame | 24s/f |
| Gain | 40-110Db |
| Language | Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil) |
| Power | by built-in 4200mAh battery |
| Power Consumption | 4W (probe run) /1.5W (probe stop) |
| Battery Replaceable | Yes |
| Battery Last | 3 hours (working time), More than 5 hours (Stand by time) |
| Charger | wireless charger |
Reassure patients and avoid unnecessary ambulance travel: save time and money.
Handheld ultrasound probe is a kind of personal ultrasound.
This is the latest generation of 2-in-1 probe: convex head and transvaginal head.

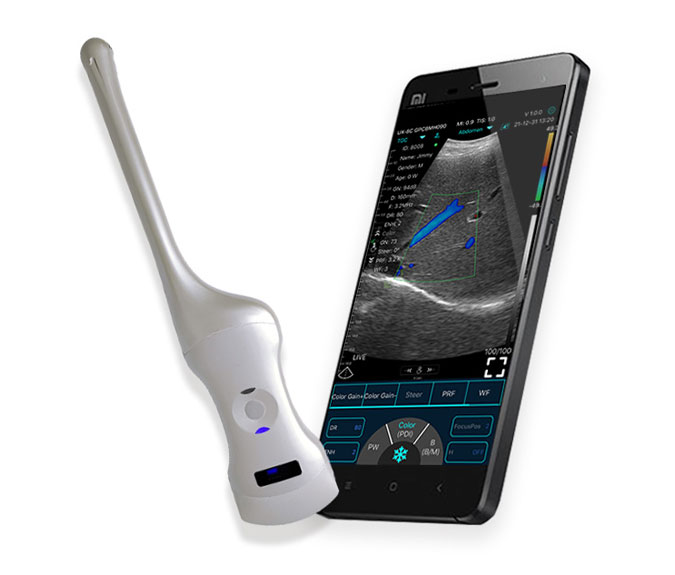

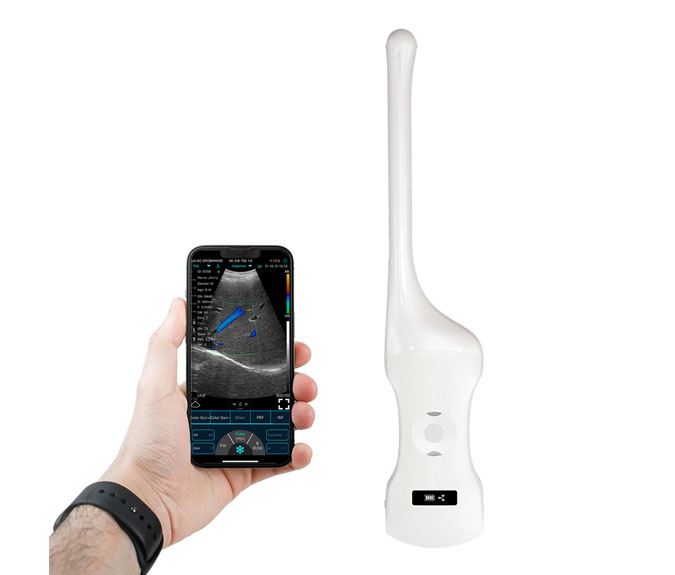

It is very flexible: direct WiFi connection between the probe and your phone or tablet via cable.
WiFi connection with iOS, Android and Windows systems.
IPX7 Waterproof and easy to disinfect.
Can diagnose and stage some lung cancer patients.
In addition, it can also be used to detect ovulation and other conditions inside the pelvic cavity.
Mainly understand the depth of tumor invasion, the relationship between the tumor and surrounding organs, and the extent of tumor infiltration under the mucosa.
Provides treatment by locating suspicious hilar and mediastinal lymph nodes by measuring distance from incisors and scanning direction.
