C10(micro-convex+linear Prostate biopsy probe)

The C10 is used to examine a man's prostate using sound waves and helps diagnose symptoms such as difficulty urinating or elevated blood test results. It is also used to examine nodules found during a rectal exam, detect abnormalities, and determine whether the glands are enlarged. Ultrasound is safe, non-invasive and does not use ionizing radiation.

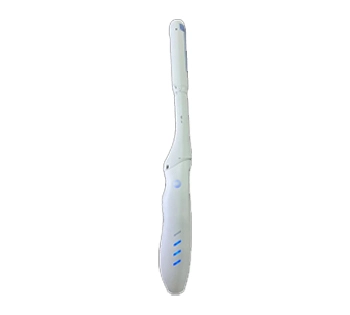

c10micro convexlinear 3

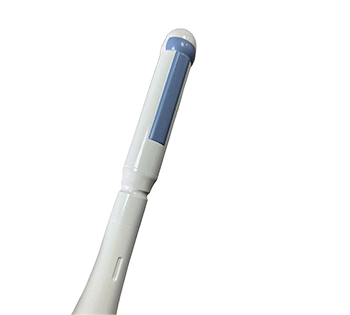

c10micro convexlinear 1

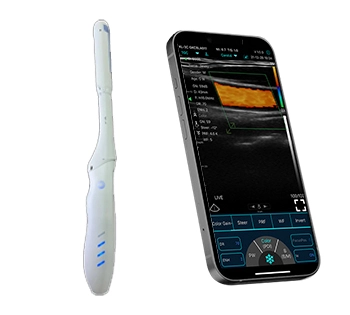

c10micro convexlinear 2

Konted C10(micro-convex+linear Prostate biopsy probe) Ultrasound Specifations

Product specs:

ModelC10(micro-convex+linear Prostate biopsy probe)
Probe Type

Micro-convex array probe

Linear array probe

Software SystemsAndroid. IOS. Windows
Probe Button-Power on/off

-Freeze/unfreeze

-Switch scanning probe

*ConnectionWi-Fi
USB
Wi-Fi Type802.11n/20MHz/
2.4G/5G
Frequency

6.5/8mhz 7.5/10mhz

Scan Depth

40/60/80/100mm

Scan Angle150°
Length/
Elements128
Dimensions

121x54x30mm

Weightg
*Anti-skid Design4 sides of probe
Waterproof GradeIPX7
Display ModeB
B+B
B+M
Color

PW/CW

PDI

B+Color+PW

*Dual&Full screen Display
Software Control
B GN(Gain)
Color GN(Gain)
D(Depth)
ENH(Enhancement)
DR(Dynamic Range)
H(harmonic)
Focus
8 TGC
Mid-Line
An note
Page Left/Right Up/Down












*Body Mark
Dicom
Image storageJPEG, MP4, Dicom
Clip LoopAutomatic / manual
100-200-500-1000 frame
Frame rate18~24 F/S
PresetsAbdomen. Cardiac.
Measures

B: Length, Area/Circumference, Angle,Trace,Distance,GA(CRL,BPD,GS,FL,HC,AC), EFW(BPD,FL)

B+M: Heart Rate, Time, Distance, LVID( LVIDd, LVIDs, EF, SV)

B+PW:Velocity, Heart Rate(2), S/D, Depth

Automatic Vessel Flow Measure:PS, ED, TAMAX, TAMEAN, PI, RI, S/D, Diam, Flow

Measure Magnify
*Built in cooling coating
*Working While charging
BatteryBuilt-in High capacity Lition batteries3.8 V, 2600 mAh, 9.88 wh.
Power Consumption3 W (Live) / 1 W (freeze)
Continuous hours of scanning4h
72h Ultra-long standby
Recharge time3~4h
*ChargingType-C USB
Wireless charging
LanguageChinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)
Shell Colors4 styles
