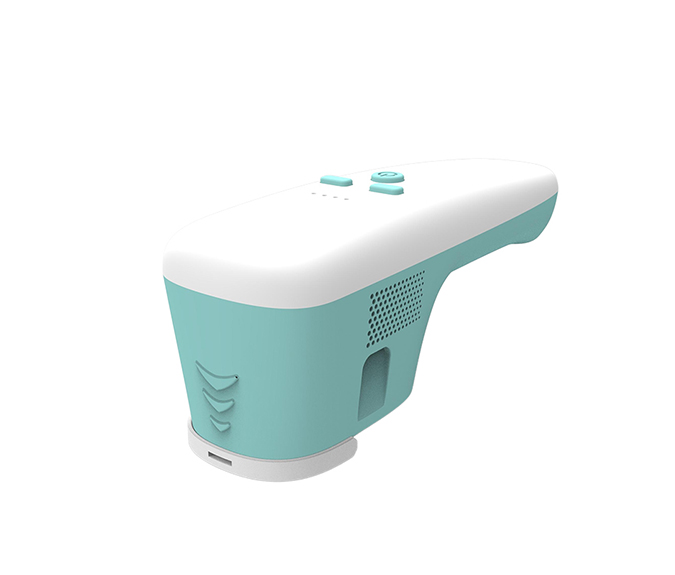

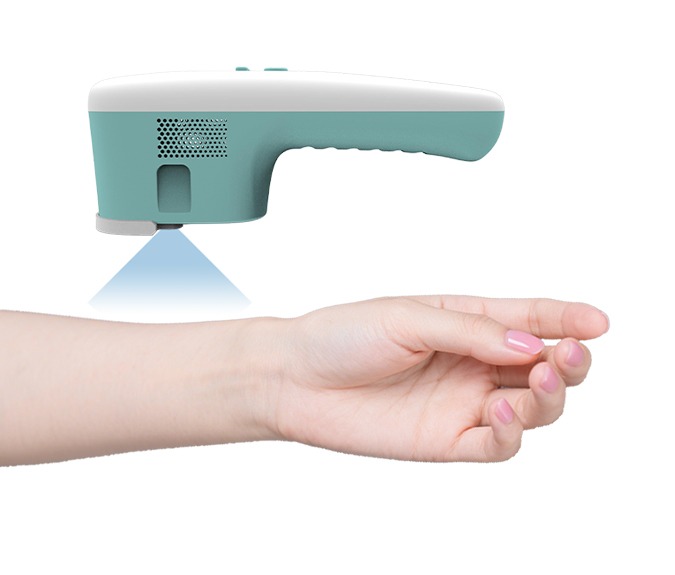

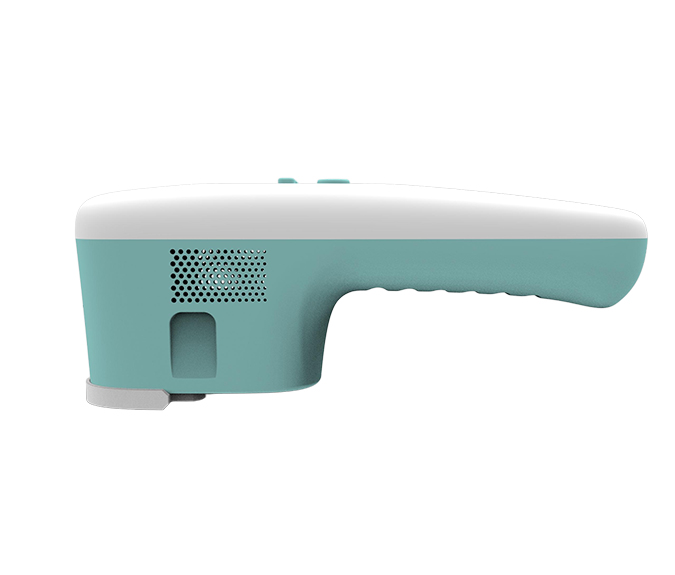

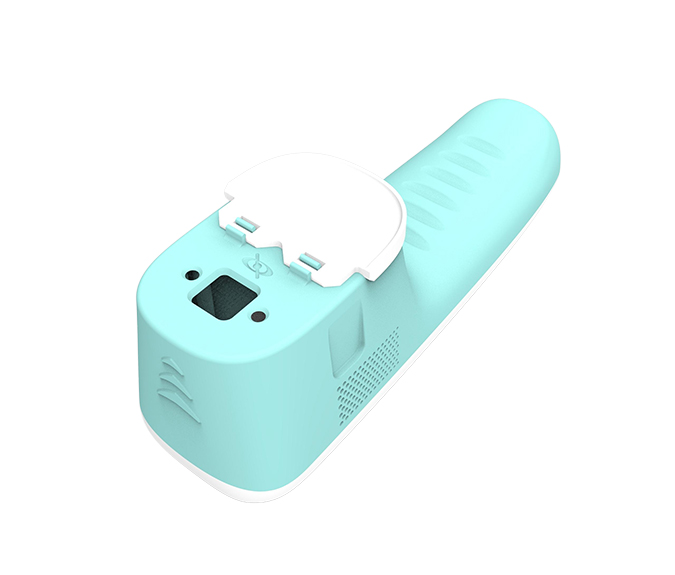

Innovative portable vein imaging devices project blood vessels onto skin with instant precision.Built ergonomically and equipped with advanced infrared tech, it shows high-def, real-time vein images.A must-have for medical staff, it helps find veins in patients of all types—from obese and chemo patients to those with dark skin or vascular issues.
Eight color modes adapt to different ages, body types, and clinical scenarios. Suitable for adults, kids, and infants.

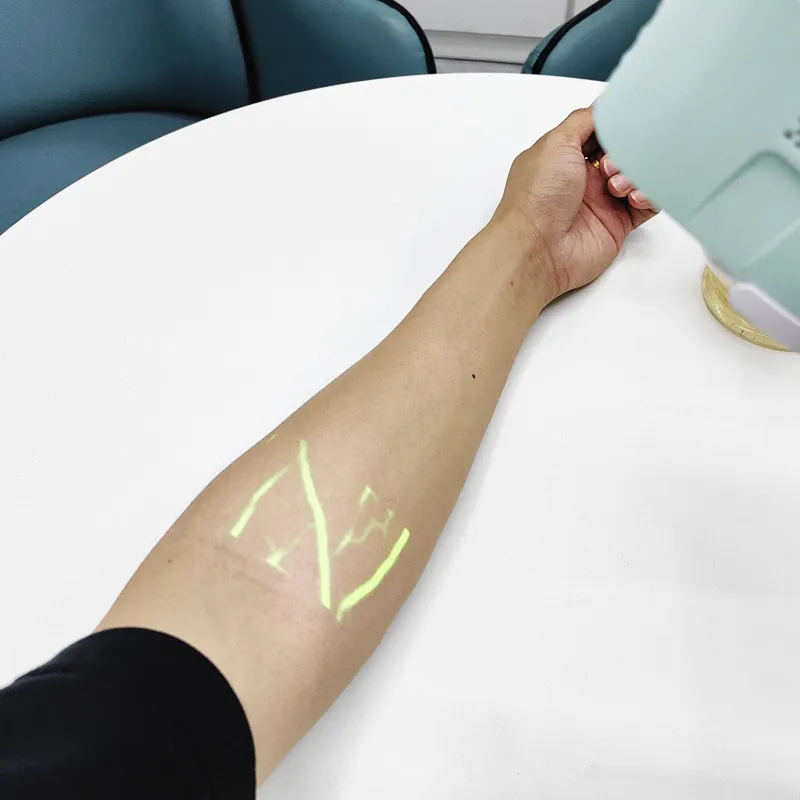

Visualize vessel details to identify the best puncture spot, reducing pain and improving procedure success.
| Parameter category | Option description |
| Model | KT-10 |
| Light type | Near-infrared light |
Display color mode | 8 switchable modes |
| Display resolution (size) | 4 types |
| Corresponding color reversal | Yes |
| Infrared wavelength | 750nm～980nm |
| Detection depth | 0-10mm |
| Effective projection distance | 20cm～25cm |
| Projection accuracy | ≤0.2mm |
| Battery level detection display | 4 levels |
| Battery capacity | Built-in 3400mAh lithium battery |
| Charging method | USB Cable & wireless charging |
| Charging time | 3.5h |
| Working time | 3h |
| Adapter | Input: 100-240V 50/60Hz 0.35 A Output: DC 5V 2.4A |
| Weight | 340g |
| Dimension | 20cm(L)*6.3cm(W)*7.5cm(H) |
