C10T One-Probe Multipurpose Ultrasound Convex+ Linear+ Cardiac Probe

The C10T wireless ultrasonic probe adopts convex array probe + linear array probe juxtaposed together, Ultra wide frequency:2.5Mhz-10Mhz, so that a single probe can complete the whole body examination, one multipurpose ultrasound can provide B,BM, Color,PW mode image for you.

whole body ultrasound
full body ultrasound
whole body abdomen ultrasound
whole body ultrasound scan

Specification of C10T One-probe Multipurpose Ultrasound Convex+Linear+Cardiac Probe

Product specs:

ProbeWireless convex+linear+cardiac 3 in 1 probe
Elementsdual 128
Frequency3.5/5.0mhz, 7.5/10mhz,2.5/5.0mhz
Depth90-305mm, 20-80mm, 90-160mm
HostTablet, Smart phone, PC
ConnectionWiFi (USB optional)
Software Adjustable ParametersGN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down.
MeasurementB: Length, Area/ Circumference, Angle, Trace, Distance, GA(CRL, BPD, GS, FL, HC, AC), EFW(BPD, FL)
B+M: Heart rate, Time, Distance
B+PW: Velocity, Heart rate(2), S/D, Depth
Playback Frames100, 200, 500, 1000 optional
Display ModeB, B/M, color, PW, PDI
Image Gray Scale256 level
WiFi TypeBuilt-in WiFi, 802.11g/20MHz/5G/450Mbps
Channel64
Frame24s/f
Gain40-110Db
LanguageChinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)
Powerby built-in 4200mAh battery
Battery ReplaceableYes
Battery Last3 hours(Working time), 12hours (Stand by time)
Chargerwireless charger


Features of C10T One-probes Multipurpose Ultrasound convex+linear+cardiac probe

Features of C10T One-probes Multipurpose Ultrasound convex+linear+cardiac probe
  • Different probes have different array elements

    scanning depth, footprints, etc., KONTED Wireless Ultrasound probes  are suitable for examining different body parts

C10T One-Probe Multipurpose Ultrasound Convex+ Linear+ Cardiac Probe Video Display

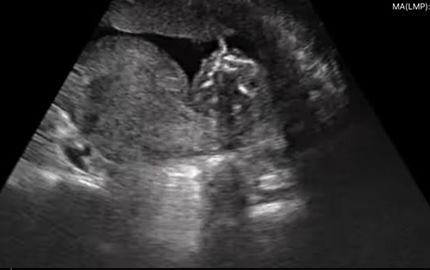

Whole Body Abdomen Ultrasound Fetal B
Whole Body Abdomen Ultrasound Fetal B
Whole Body Ultrasound Kidney B
Whole Body Ultrasound Kidney B
Whole Body Ultrasound Scan Kidney C
Whole Body Ultrasound Scan Kidney C
Full Body Ultrasound Pancreas B
Full Body Ultrasound Pancreas B
