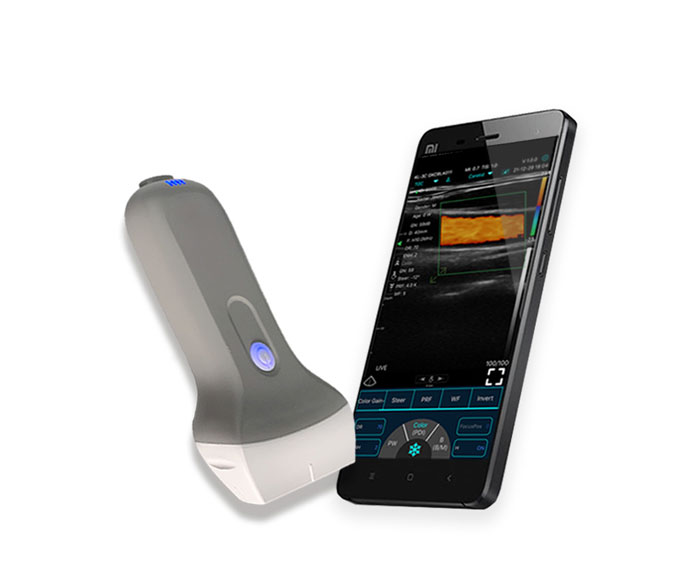

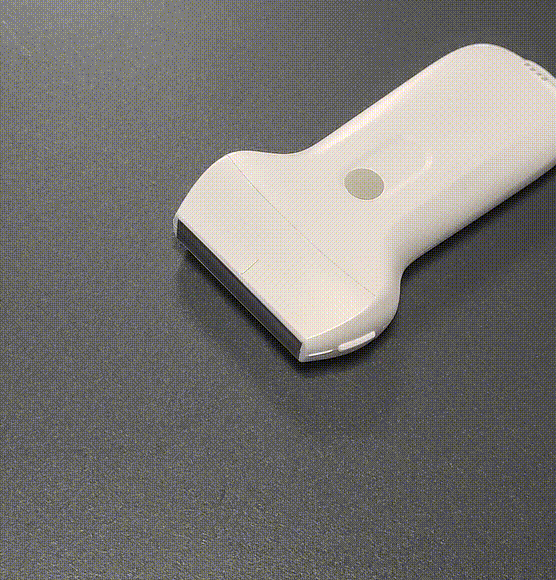

C10UL Color Superfical Ultrasound USB&Wifi Linear Probe

C10UL Ultrasound-guided peripheral nerve blocks have been associated with higher success rates than traditional anatomic techniques.Two connection methods, USB & WiFi, support charging while working. USB ultrasound probe can scan longer, you can connect the ultrasound scanner to android device and widnows device via c-type cable

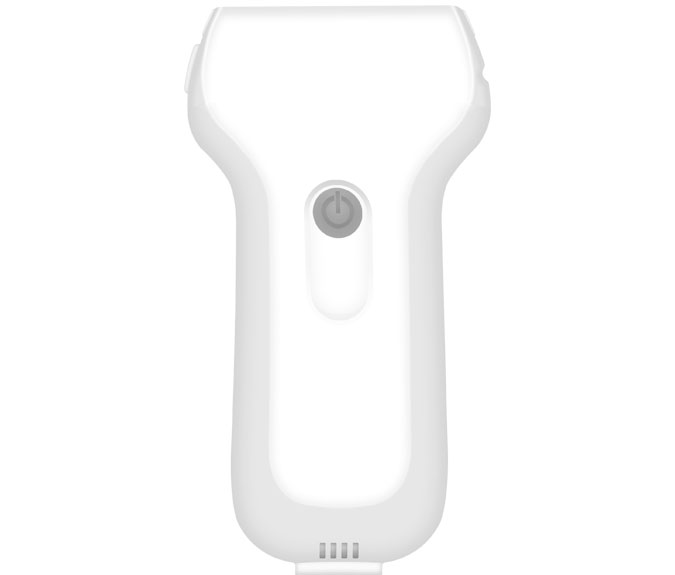

linear array transducer ultrasound
linear array probe ultrasound

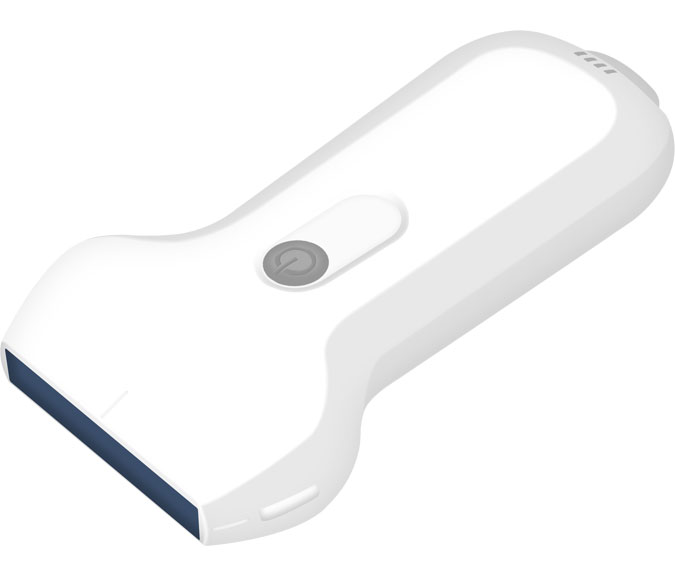

linear array ultrasound probe

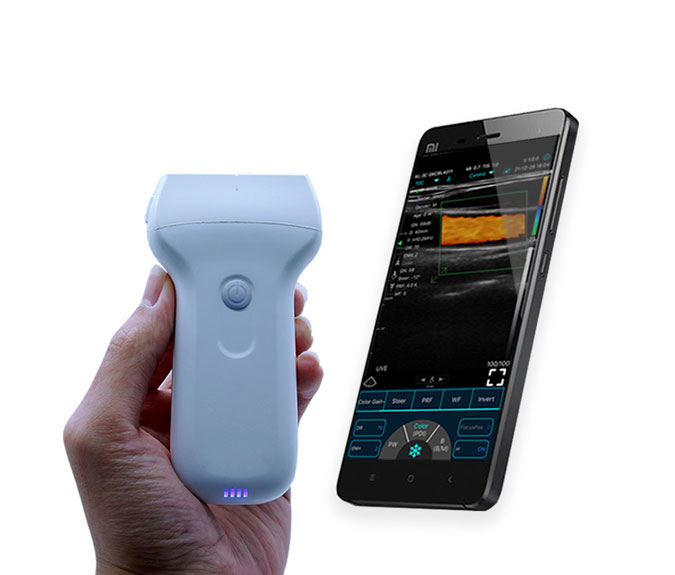

linear array transducer

Specification of C10UL Superfical Ultrasound Basic Linear Probe

Product specs:


ProbeWireless linear probe
Elements128
Frequency7.5-10Mhz
Depth40-100mm
PresetsThyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve
HostIOS/Android/Windows, Tablet, Smart phone, PC
ConnectionWiFi&USB
Software Adjustable ParametersGN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote
MeasurementB: Length, Area, Circumference, Angle, Trace, Distance
B+M: Heart rate, Time, Distance
B+PW:Velocity,Heart rate(2), S/D, Depth
Playback Frames100, 200, 500, 1000 optional
Display ModeB, B/M, B+B, Color, PW, PDI
WiFi TypeBuilt-in WiFi, 802.11g/20MHz/5G/450Mbps
Channel64
Frame24s/f
Gain40-110Db
LanguageEnglish, Chinese,Russian, German, Italian, Spanish, Portuguese
Powerby built-in 4200mAh battery
Battery ReplaceableYes
Battery Last3hours (Working time), 12hours (Stand by time)

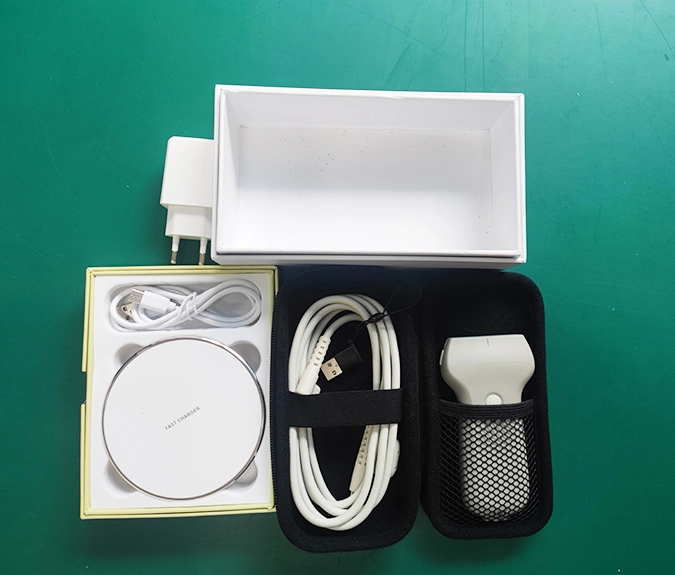

ChargerWireless charger, USB cable


Features of C10UL Color Superfical Ultrasound USB&Wifi Linear Probe

Features of C10UL Color Superfical Ultrasound USB&Wifi Linear Probe
  • Can be applied to abdominal diagnosis,

    Suitable for emergency, clinic, outdoor and veterinary examination.

  • Manage your patient information

    Save and share images/videos, print patient reports.

Color Color Superfical Ultrasound Video Display

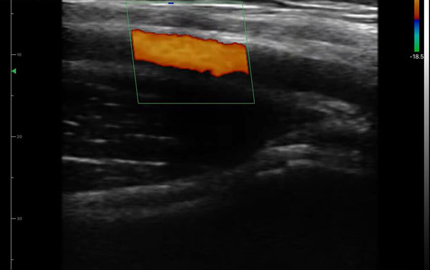

Linear Array Probe Ultrasound Axillary Artery C
Linear Array Probe Ultrasound Axillary Artery C

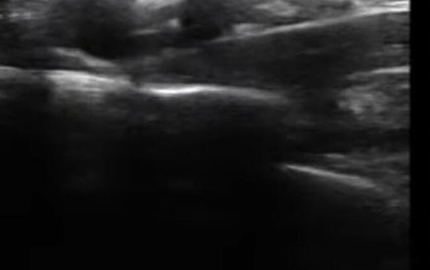

Linear Array Probe Brachial Plexus
Linear Array Probe Brachial Plexus

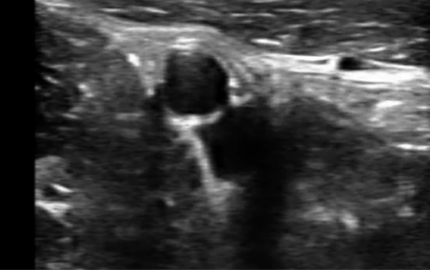

Abdominal Ultrasound Transducer Iliac Artery B
Abdominal Ultrasound Transducer Iliac Artery B

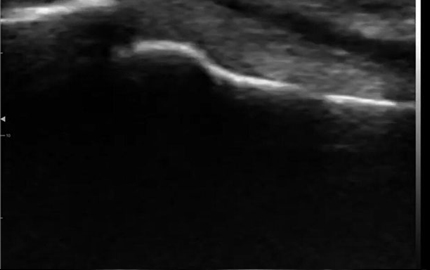

Curved Linear Ultrasound Probe Finger Flexor Tendon
Curved Linear Ultrasound Probe Finger Flexor Tendon

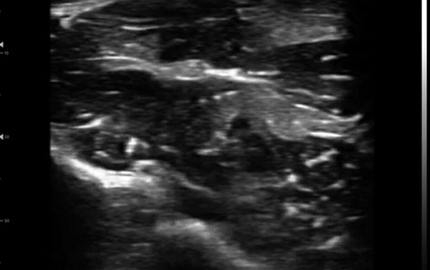

Curved Linear Probe Median Nerve
Curved Linear Probe Median Nerve

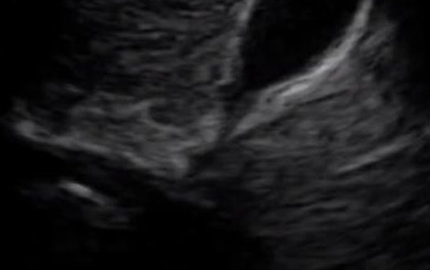

Curved Linear Array Transducer B Gallbladder
Curved Linear Array Transducer B Gallbladder
