Beijing Konted Medical Technology Co.,Ltd.

C10CW USB&Wifi Cardiac CW Ultrasound Probe

Wireless Ultrasound Scanners are wireless and work with a mobile app that is compatible with most iOS and Android smart devices as well Windows system, also can be connected with Type-C cable. Imaging transmission is done by internal 5G Wi-Fi , no external networks needed and work for most specialties in hospitals , clinics, healthcare center etc.

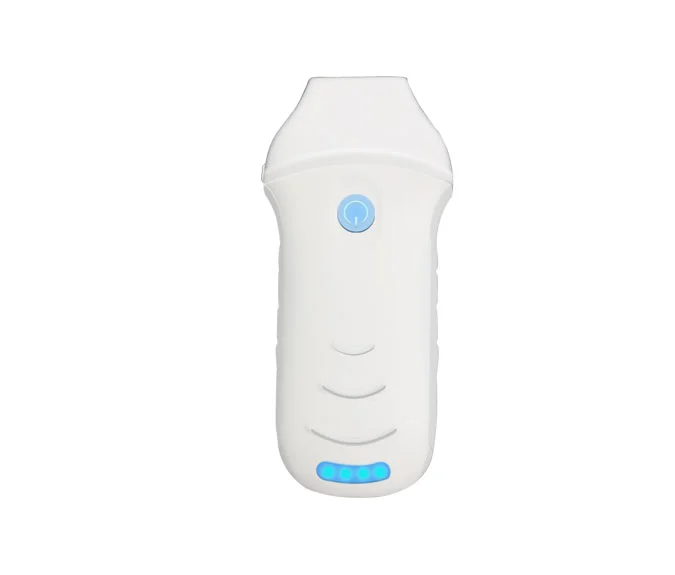

c10cw cardiac probe1

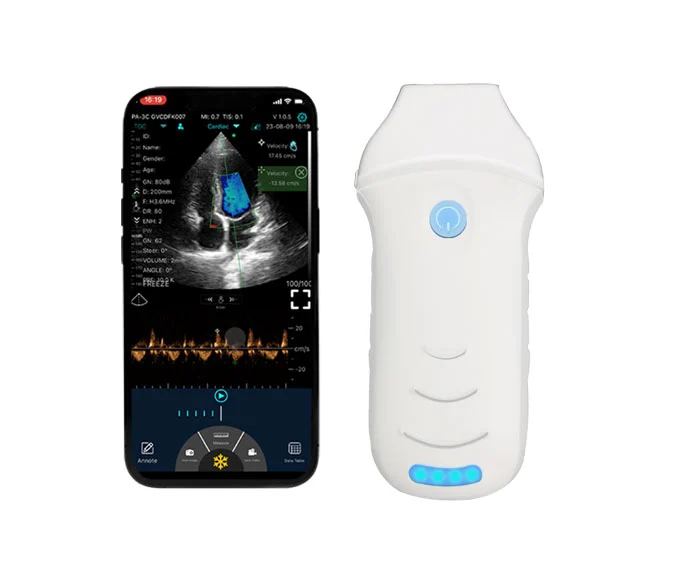

c10cw cardiac probe2

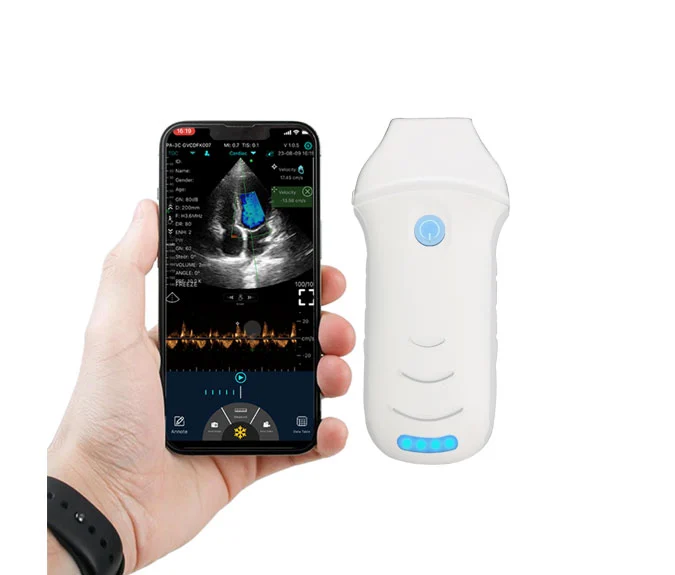

c10cw cardiac probe3

Specification of C10CW USB&Wifi cardiac CW ultrasound probe

ModelC10CW
Probe TypePhased array probe
Software SystemsAndroid. IOS. Windows
Probe Button-Power on/off
-Freeze/unfreeze
*ConnectionWi-Fi
USB
Wi-Fi Type802.11n/20MHz/
2.4G/5G
Frequency2.2/3.6Mhz
Scan Depth90~240mm
Scan Angle80°
PRF2.0-20K
Length25mm*16mm
Elements128
Dimensions114x53x30mm
Weight165g
*Anti-skid Design4 sides of probe
Waterproof GradeIP68
Display ModeB
B+B
B+M
Color

PW/CW

PDI

B+Color+PW/CW

*Dual&Full screen Display
Software Control
B GN(Gain)
Color GN(Gain)
D(Depth)
ENH(Enhancement)
DR(Dynamic Range)
H(harmonic)
Focus
8 TGC
Mid-Line
An note
Page Left/Right Up/Down












*Body Mark
Dicom
Image storageJPEG, MP4, Dicom
Clip LoopAutomatic / manual
100-200-500-1000 frame
Frame rate18~24 F/S
PresetsCardiac, Abdomen,user1,user2
Measures

B: Length, Area/Circumference, Angle,Trace,Distance,

B+M: Heart Rate, Time, Distance, LVID( LVIDd, LVIDs, EF, SV)

B+PW/CW:Velocity, Heart Rate(2), S/D, Distance.

Measure Magnify
*Built in cooling coating
*Working While charging
BatteryBuilt-in 2 rechargeable High capacity Lition batteries 3.8 V, 2600 mAh, 9.88 Wh
Power Consumption3 W (Live) / 1 W (freeze)
Continuous hours of scanning4h
72h Ultra-long standby
Recharge time3~4h
*ChargingType-C USB
Wireless charging
LanguageChinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)
Shell Colors2 styles



Feature of USB&Wifi Cardiac CW Ultrasound Probe

Feature of USB&Wifi Cardiac CW Ultrasound Probe
  • It is equipped with CW mode, which can achieve continuous pulse Doppler.

    It can better view and diagnose diseases.

  • WiFi&USB, 2 connection methods, support working while charging.

    Wireless charging and wired charging take the same time.

  • B, B+B, B/M, Color, PW, PDI, B+Color+PW ,CW mode

    Multiple ultrasound mode adjustments, equipped with color ultrasound function,convenient for doctors to treat.

  • Only 165g, smaller than iphone, easy to carry

    Konted Ultrasound adopts lightweight design and easy to carry every day.

C10CW Cardiac CW Ultrasound Probe

C10CW Cardiac CW Ultrasound Probe
  • The c10cw probe can examine human organs in more detail.
  • It can assist in diagnosing whether blood vessels have stenosis, plaques, deformities, etc.

    The C10CW probe can examine blood vessels in the human body, such as carotid arteries, limb arteries, heart coronary arteries, etc.

  • It can assist in evaluating treatment effects.

    If the patient's symptoms such as palpitations and chest tightness are not relieved and the heart function is not improved after treatment, it may be that the treatment is not effective and the patient needs to change the treatment plan in time.
