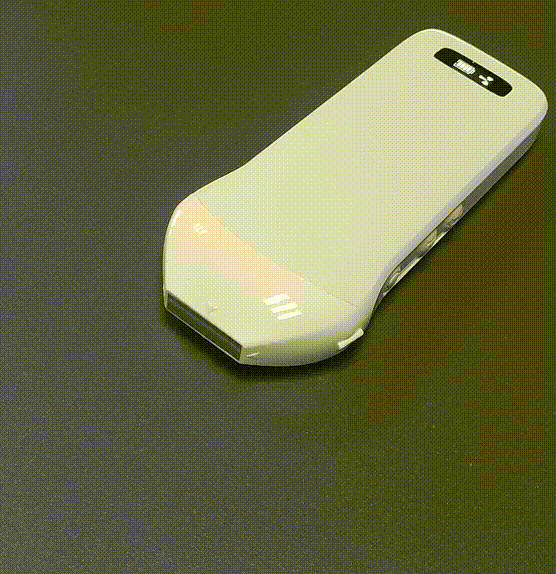

C10CS Color Superfical Ultrasound HD High-Freq Linear Probe

Gen4 Pro C10CS probe body boasts three easy-to-use activation buttons, with the linear ultrasound probe frequency set between 10-14mhz and 192 colorful elements. Color Doppler linear probe can quickly examine arteries, blood vessels, MSK, etc. is the best choice for superficial organ examination.

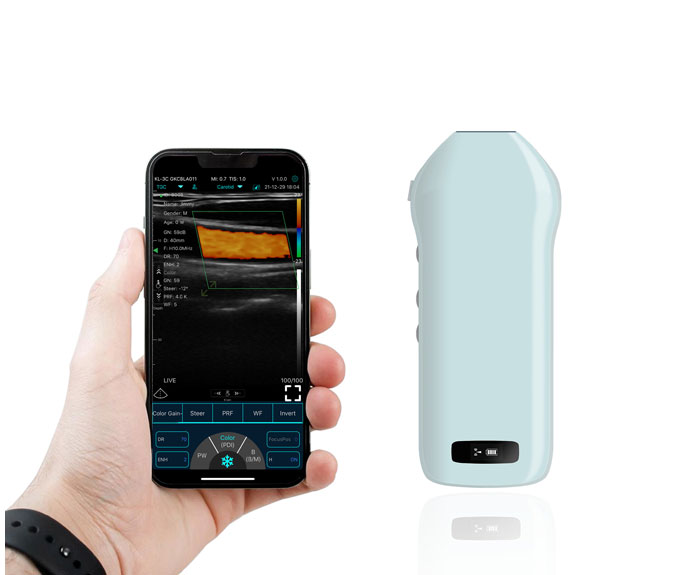

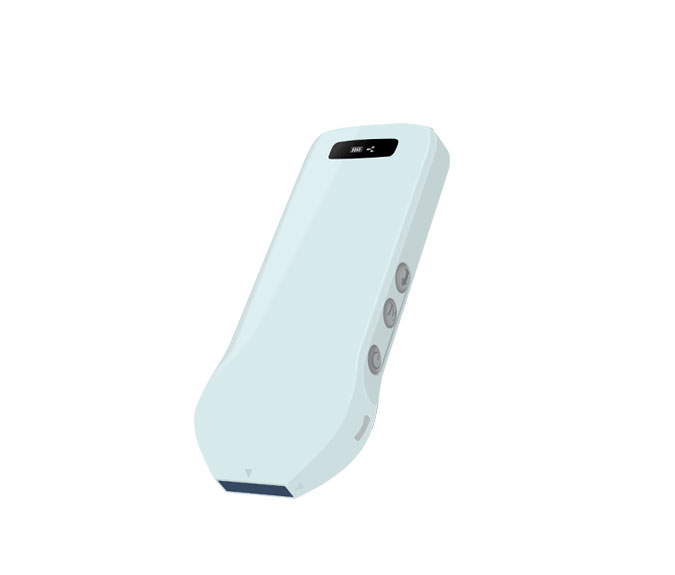

linear phased array transducer ultrasound

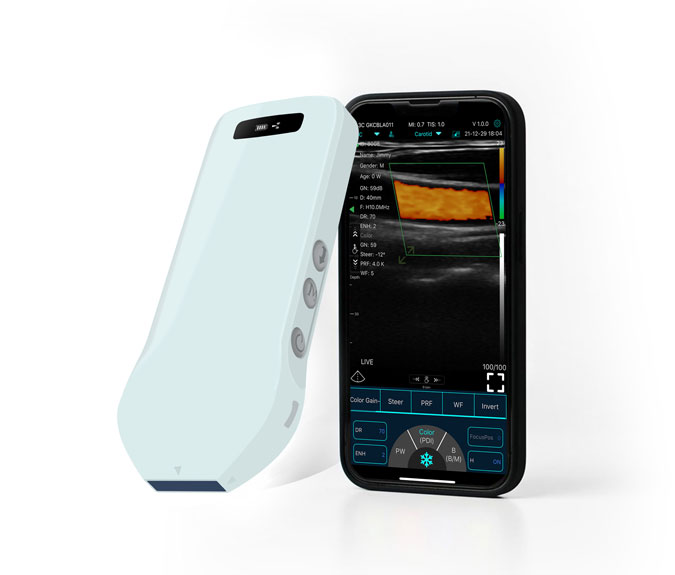

linear probe ultrasound
linear ultrasound probe
ultrasound linear probe

Specification of C10CS Color Superfical Ultrasound HD High-Freq Linear Probe

Product specs:

ProbeWireless micro linear probe
Elements192
Frequency10-14Mhz
Depth40-100mm
PresetsThyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve
HostIOS/Android/Windows, Tablet, Smart phone, PC
ConnectionWiFi
Software Adjustable ParametersGN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote
MeasurementB: Length, Area, Circumference, Angle, Trace, Distance
B+M: Heart rate, Time, Distance
B+PW:Velocity,Heart rate(2), S/D, Depth
Playback Frames100, 200, 500, 1000 optional
Display ModeB, B/M, Color, PW, PDI, B+B
WiFi TypeBuilt-in WiFi, 802.11g/20MHz/5G/450Mbps
Channel64
Frame24s/f
Gain40-110Db
LanguageEnglish, Chinese,Russian, German, Italian, Spanish, Portuguese
Powerby built-in 4200mAh battery
Battery ReplaceableYes
Battery Last3hours (Working time), 12hours (Stand by time)

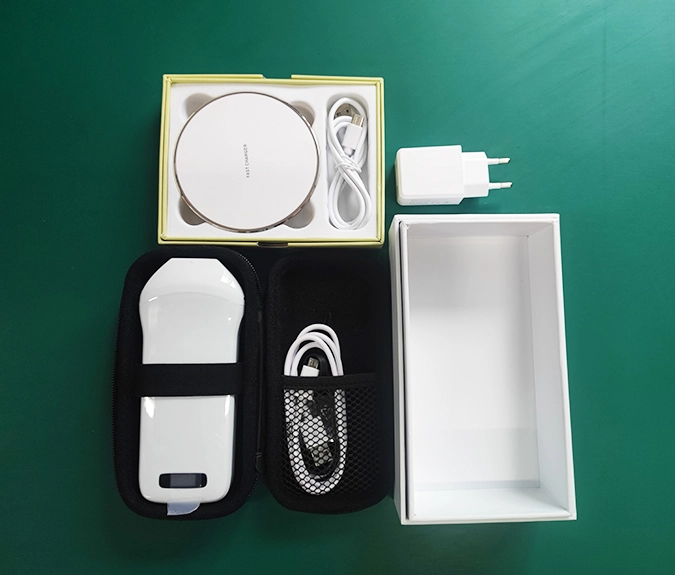

ChargerWireless charger, USB cable


Features of C10CS Color Superfical Ultrasound HD Super-Width Linear Probe

Features of C10CS Color Superfical Ultrasound HD Super-Width Linear Probe
  • Multi-system platform

    Connect Android/IOS/Windows Smartphone, tablet, PC.

  • Easy to operate and carry

    Small size, light weight 200g~240g, wireless use.

  • High-definition image

    128 elements, 4-level image optimization technology, White&Black WIFI ultrasound.

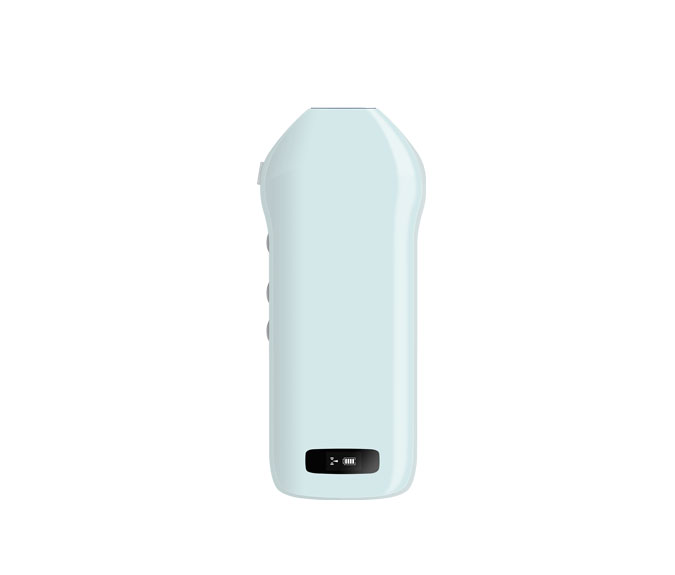

C10CS linear probe

C10CS linear probe
  • It can assist fractional radiofrequency laser treatment of skin scars
  • Use ultrasound to look at fibrous tissue to identify areas to fill scars
  • C10CS can observe skin tissue healthily without causing damage to the epidermis
  • Promotes collagen synthesis to fill scarred areas with new skin
  • It can also be used to assist in facial cleansing and prevent skin diseases

Color Superfical Ultrasound Video Display

Abdominal Ultrasound Transducer Iliac Artery B
Abdominal Ultrasound Transducer Iliac Artery B
