C10UR Color Abdomen Ultrasound USB&Wifi Basic Convex Probe

Konted designed the probe with more advantages, the C10UR probe offer doctors more choices, USB&WiFi two connection types, and support work while charging. The USB ultrasound probe can scan more longer, can connect with Android devices and Windows devices by type-C cable. Can used to scan liver, gallbladder, spleen, fetus, etc. like protable laptop ultrasound.

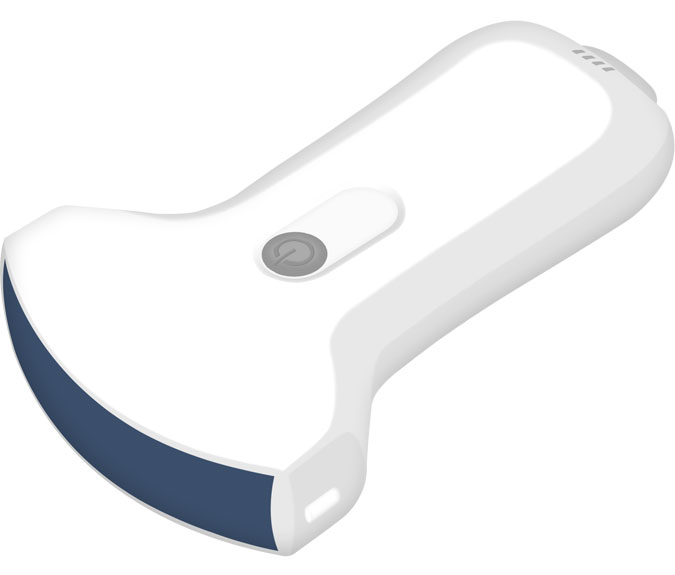

curved array transducer ultrasound

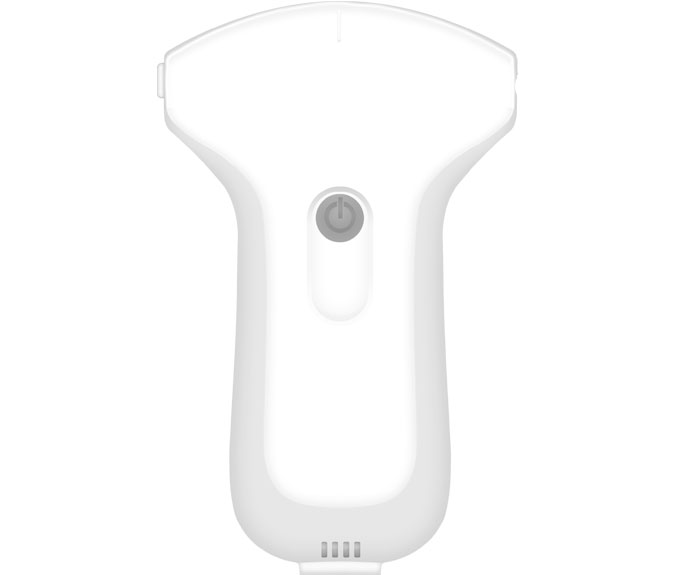

curved array transducer

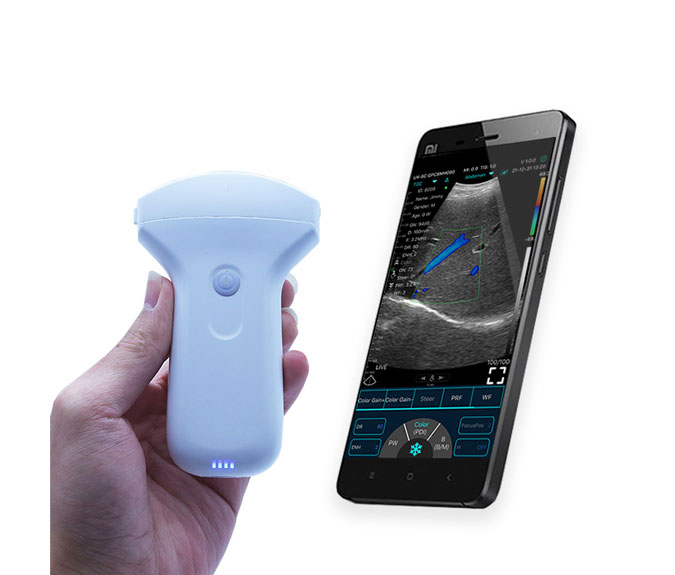

curved array probe

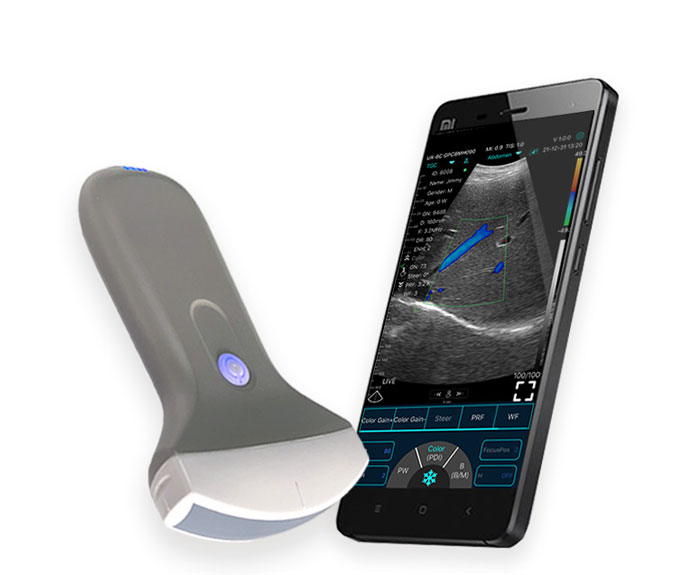

ultrasound convex probe

Specification of C10UR Color Abdomen Ultrasound Basic Convex Probe

Product specs:

ProbeWireless probe
Elements128
Frequency3.5/5.0mhz
Depth90-305mm
HostTablet, Smart phone, PC
ConnectionWIFI&USB
Software Adjustable ParametersGN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote
MeasurementB: Length, Area, Circumference, GA(CRL, BPD, GS, FL, HC, AC)
B+M: Heart rate, Time, Distance
B+PW:Velocity,Heart rate(2), S/D, Depth
Playback Frames100, 200, 500, 1000 optional
Display ModeB, B/M,Color,PW,PDI
WiFi TypeBuilt-in WiFi, 802.11g/20MHz/5G/450Mbps
Channel64
Frame24s/f
Gain40-110Db
LanguageEnglish, Chinese,Russian, German, Italian, Spanish, Portuguese
Powerby built-in 1350mAh battery
Power Consumption4W (probe run) /1.5W (probe stop)
Battery ReplaceableYes
Battery Last2hours (Working time), 12hours (Stand by time)
ChargerUSB charger


Features of C10UR Color Abdomen Ultrasound Basic Convex Probe

Features of C10UR Color Abdomen Ultrasound Basic Convex Probe
  • 128 Element WIFI USB Connections Color Doppler Ultrasound Probe.
  • Less than 150g, easy to carry.
  • Software compatible IOS Android Windows system, availble tablet, laptop, mobile phone and PC.
  • B, B/M, Color, PW, PDI modes
  • Support use while charging.

Color Abdomen Ultrasound Video Display

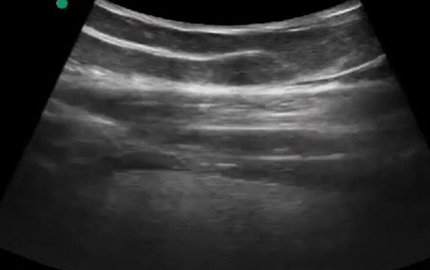

Transducer Used For Abdominal Ultrasound C10RL Lung
Transducer Used For Abdominal Ultrasound C10RL Lung

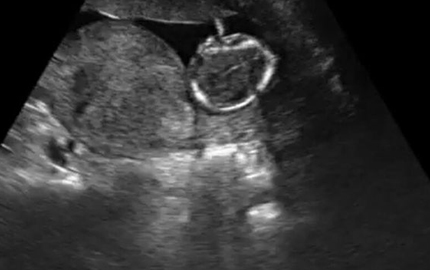

Abdominal Probe Fetal B
Abdominal Probe Fetal B

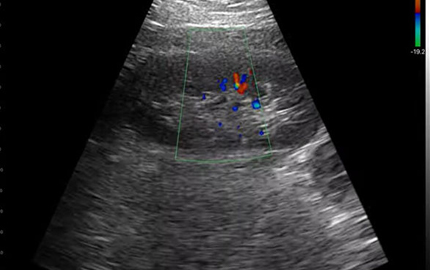

Abdominal Probe Ultrasound kidney C
Abdominal Probe Ultrasound kidney C

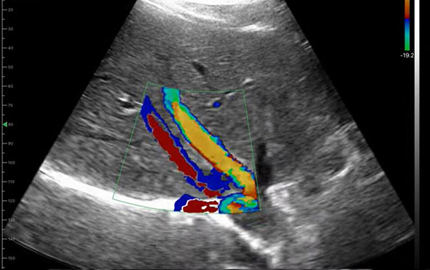

Convex Array Transducer Liver C
Convex Array Transducer Liver C
