Beijing Konted Medical Technology Co.,Ltd.

C10MB Pro USB&Wifi High Linear Ultrasound Probe

On the basis of C10MB pro, we have upgraded it and named it C10MB pro. We have added a dual battery design, increased battery life, and added a 4-sided anti slip design, achieving a waterproof level of IP68. Konted C10MB pro is a high-frequency linear array wireless ultrasound scanner designed by Konted for the facial aesthetics market.

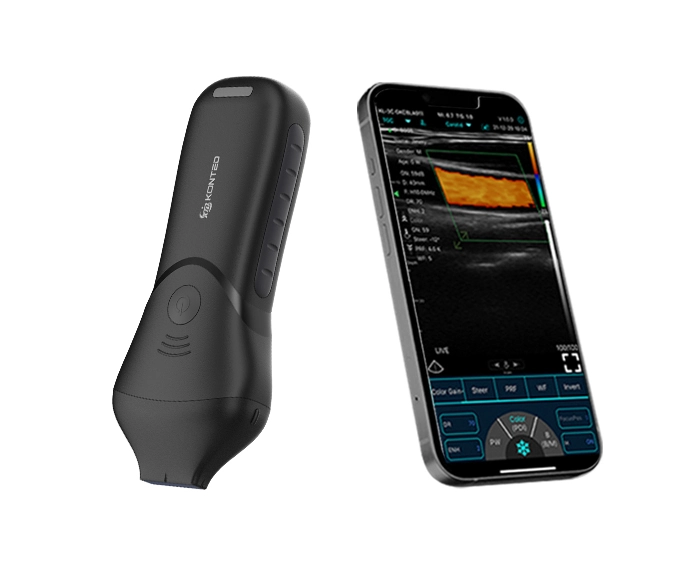

handheld c10mb pro11

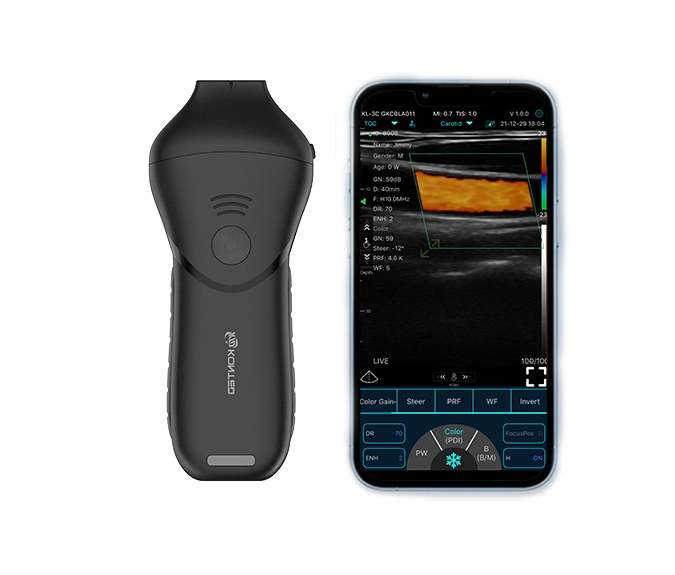

handheld c10mb pro22

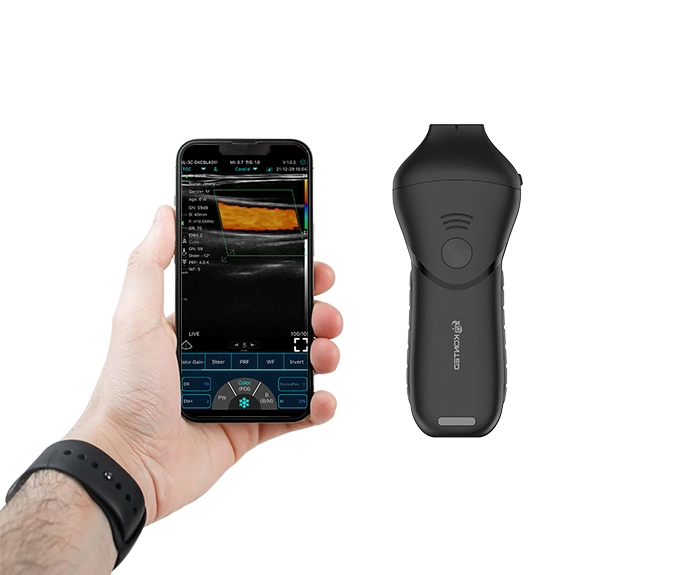

handheld c10mb pro33

Specification of C10MB Pro USB&Wifi High Linear Ultrasound Probe

ModelC10MB Pro
Probe TypeHigh Frequency Linear Probe
Software SystemsAndroid. IOS. Windows
Probe Button-Power on/off
-Freeze/unfreeze
*ConnectionWi-Fi
USB
Wi-Fi Type802.11n/20MHz/
2.4G/5G
Frequency16/20Mhz
Scan Depth10-20-30-40mm
Length25*6mm
Elements

192

DR40-110Db
Dimensions151*62*30mm
Weight223g
Waterproof Grade

IP68

Display ModeB
B+B
B+M
Color
PW
PDI
*Dual&Full screen Display
Software Control
B GN(Gain)
Color GN(Gain)
D(Depth)
ENH(Enhancement)
DR(Dynamic Range)
H(harmonic)
Focus
8 TGC
Mid-Line
An note
Page Left/Right Up/Down












*Body Mark
Dicom
Image storageJPEG, MP4, Dicom
Clip LoopAutomatic / manual
100-200-500-1000 frame
Frame rate18~24 F/S
PresetsThyroid, SmallParts, Pediatrics, Vascular, Carotid, Breast, MSK, VesselFlow, Nerve
MeasuresB: Length, Distance,Area/Circumference, Trace,Depth, Angle,
B+M: HeartRate, Time, Distance, LVID
B+PW:Velocity, Heart Rate(2), S/D, Depth, Time.
Measure Magnify
*Built in cooling coating
*Working While charging
BatteryBuilt-in High capacity Lition batteries
4400 mAh,
Power Consumption3 W (Live) / 1 W (freeze)
Continuous hours of scanning4h
72h Ultra-long standby
Recharge time3h
*ChargingType-C USB
Wireless charging
LanguageChinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)


Feature of C10MB PRO

Feature of C10MB PRO
  • Only 155g,smaller than iphone, easy to carry.

    Easy to operate and carry.

  • High-frequency linear array probes

    16-20Mhz,Scan Depth 10-40mm.

  • B,B+B,B+M,Color PW,PDI

    Multiple ultrasound mode adjustments, equipped with color ultrasound function,convenient for doctors to treat.

  • WiFi&USB, 2 connection methods, support working while charging.

    Wireless charging and wired charging take the same time.
