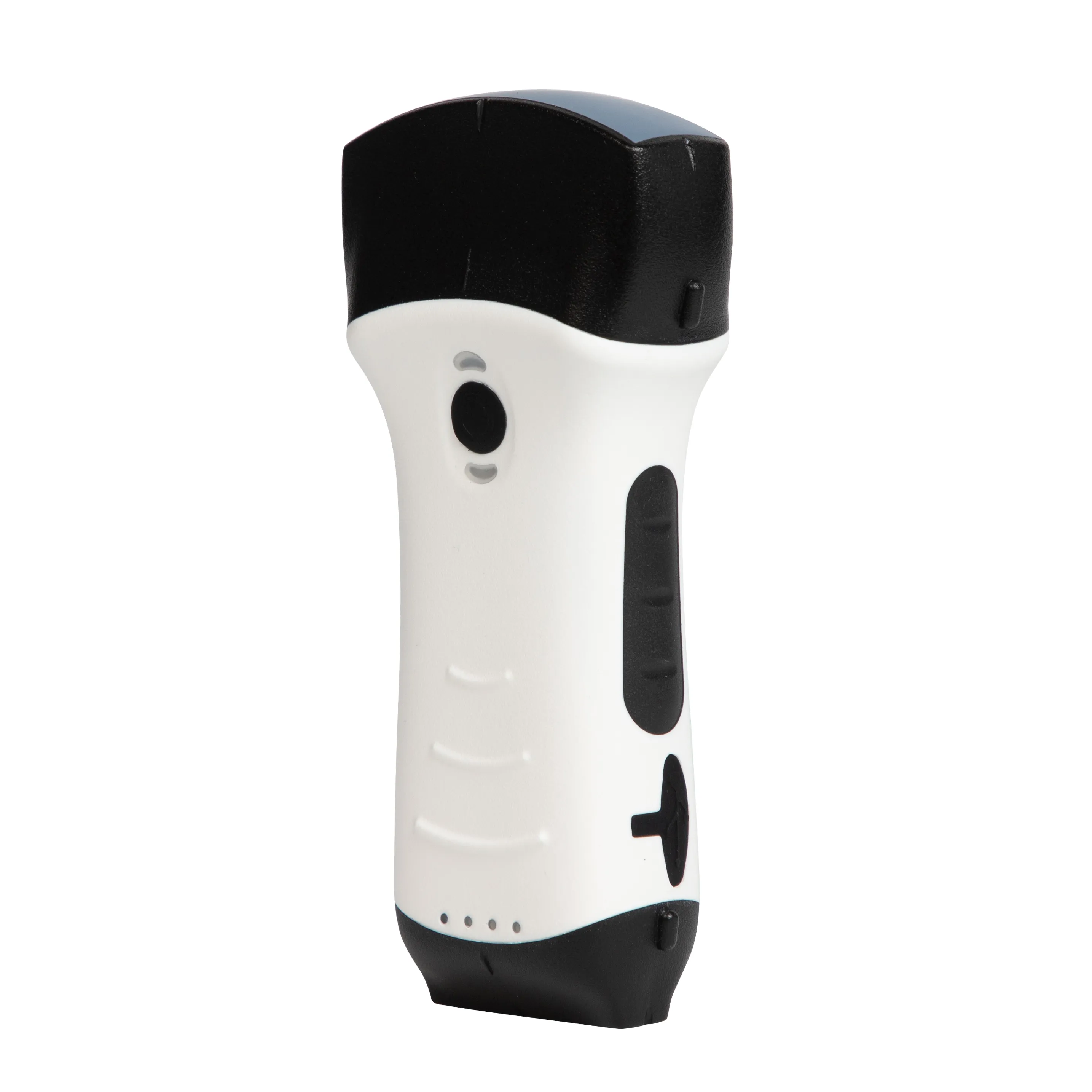

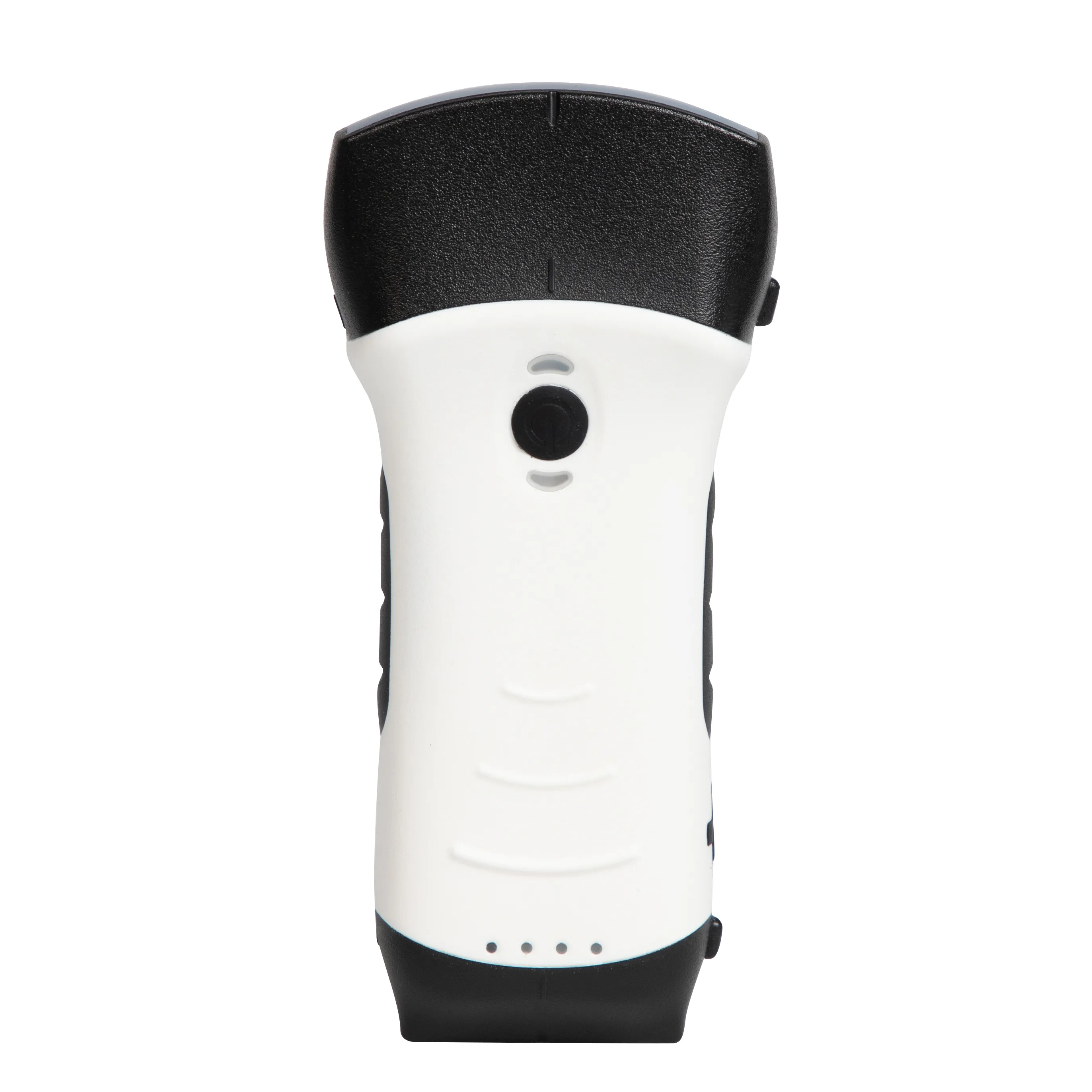

The C10TX PRO is our newly upgraded model, designed to meet the evolving demands of
clinical practice. With an extended footprint for both convex and linear arrays, it provides
broader coverage and deeper visualization, enabling doctors to capture more diagnostic
information in a single scan.
Equipped with 192 elements and 64 channels, the C10TX PRO delivers superior
image resolution and enhanced clarity, ensuring more accurate assessments
across a wide range of applications. This leap in performance allows clinicians
to distinguish subtle structures with confidence.Combining advanced imaging
with robust design, it empowers healthcare professionals to diagnose faster,
clearer, and with greater precision.
.webp "txpro (4)")
_20250919113110.webp "txpro (1)")
Product specs:
| Probe | Wireless dual head convex+linear+Cardiac probe |
| Elements | Dual 192 |
| Frequency | 3.2/5Mhz , 7.5/I0Mhz ，2.5/5Mhz |
| Depth | 90-160-220-305mm , 20-40-60-100mm ，90-120-140-160mm |
| Scan Angle | Convex 45° Cardiac:80° |
| length | Linear: 34mm |
| Radius | Convex :R60 |
| Presets | Abdomen, GYN, OB, Cardiac,Urology, Kidney, Lung,User1, User2; Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, Msk, Nerve, Aesthetics, Vessel Flow, User1,User2; |
| Host | Android/IOS/Windows Tablet, Smart phone, PC |
| Connection | WiFi & USB |
| Software Adjustable Parameters | GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down. |
| Measurement | B: Length, Area/Circumference, Angle, Trace, Distance GA(CRL,BPD,GS,FL,HC,AC)EFW(BPD,FL) B+M: Heart rate, Time, Distance, LVID(LVIDd, LVIDs, EF, SV) B+PW: Velocity, Heart rate(2), S/D, Depth. Automatic Vessel Flow Measure：PS, ED, TAMAX, TAMEAN, PI, RI, S/D, DIAM, FL |
| Playback Frames | 100, 200, 500, 1000 optional |
| Display mode | B, B+B, B/M, Color, PW, PDI, B+Color+PW |
| Image Gray Scale | 256 level |
| WiFi Type | Built-in WiFi, 802.11g/20MHz/5G/450Mbps |
| Channel | 64 |
| Frame | 24s/f |
| Gain | 40-110Db |
| Language | Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil) |
| Power | * by built-in 1 Lithium batteries 2800 mAh. |
| Battery Replaceable | Yes (by engineer) |
| Battery Last | * 4hours (Working time), 72 hours(Stand by time) |
| Charger | wireless charger |
| Anti skid Design | / |
| Waterproof grade | * IP68 |
| Built-in cooling coating | * Yes |
